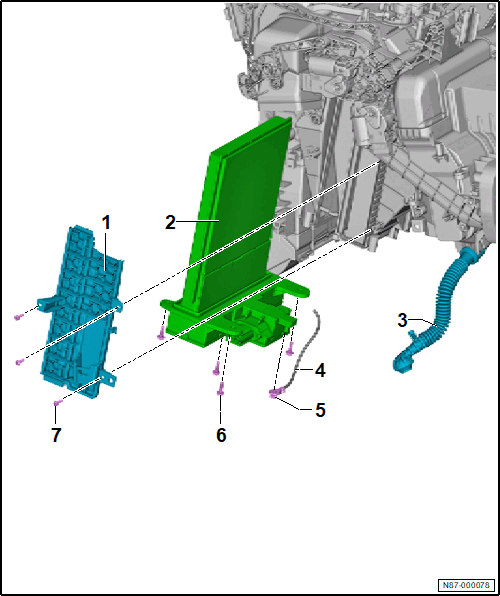

Overview - Heater And A/C Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cover for High-Voltage Heater (PTC) -ZX17-
High-Voltage Heater (PTC) -ZX17-
- Refer to High-Voltage Heater (PTC) -ZX17-, Removing and Installing .
Condensation Water Drain
- Refer to Condensation Water Drain, Checking .
- Refer to Condensation Water Drain, Removing and Installing .
Potential Equalization Cable
- Refer to OVERVIEW - POTENTIAL EQUALIZATION CABLES, AWD / OVERVIEW - POTENTIAL EQUALIZATION CABLES, AWD .
Nut
- 8 Nm
Bolt
- Quantity: 4
- 3 Nm
Bolt
- Quantity: 3
- 1 Nm
