Rear Lid Control Module J605, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The Rear Lid Control Module -J605- will be called the control module in the information that follows.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

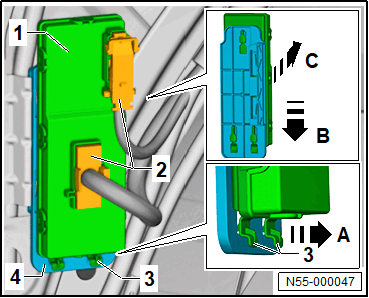

-- Disconnect the connectors -2-.
-- Release the hook -3- in the direction of -arrow A- and push the control module -1- all the way in the direction of -arrow B-.
-- Remove the control module -1- in the direction of -arrow C- from the bracket for the control module -4-.
