Rear Lid Opener Control Module J938, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

-- Disconnect the connectors -2 and 3-.

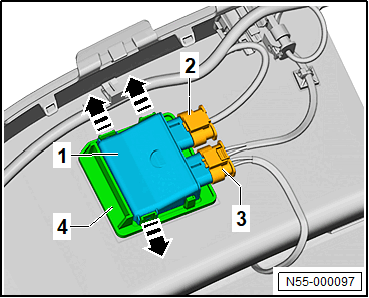

GWWN55-000097Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers in direction of -arrow-.

-- Remove the control module -1- from the control module bracket -4-.
