Warning Label, Checking

A warning label is located on all high-voltage components.

• Replace any identification, warning and information labels on vehicle components that are unreadable or damaged, and re-attach them in the same location.
• They must be present on all high-voltage components.

Warning label in visible area

Check the rescue tag on the following components:

-- Rescue tag in the vehicle interior on the fuse panel behind the fuse box cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rescue tag High-Voltage System Maintenance Connector -TW-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation

Check the warning label on the following components:

-- Warning label on left front lock carrier.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

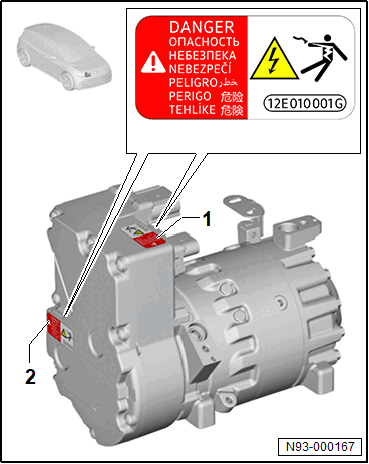

-- Warning label on A/C Compressor with Magnetic Clutch and Regulator Valve -VX81-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

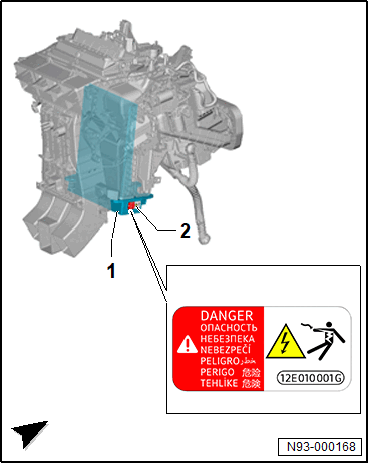

-- Warning label on High-Voltage Heater (PTC) -ZX17-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Wheel Drive (RWD)

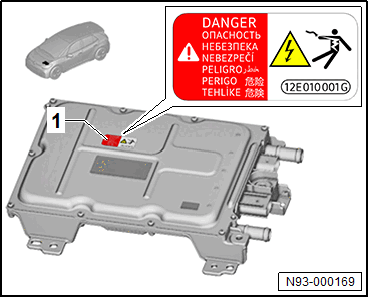

-- Warning label on Voltage Converter -A19-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

Continuation

Warning label in nonvisible area

Check the rescue tag on the following components:

-- Rescue tag behind the right luggage compartment side trim panel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation

Check the rescue tag on the following components:

-- Rescue tag behind the right tail lamp.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation

Check the warning label on the following components:

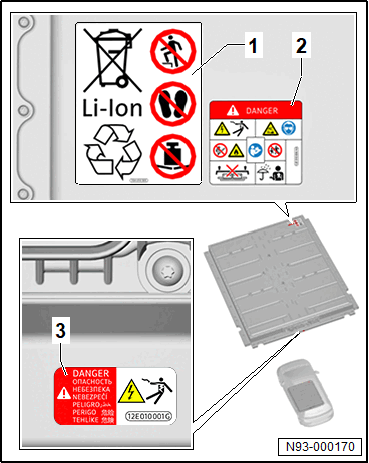

-- Warning label on High-Voltage Battery 1 -AX2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

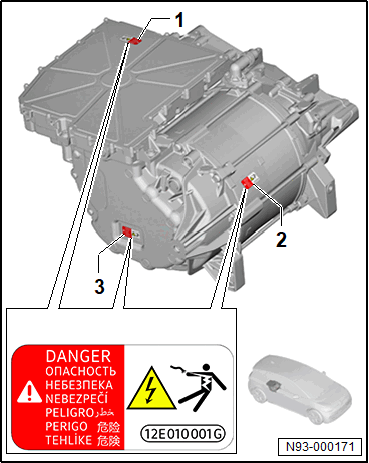

-- Warning label on Three-Phase Current Drive -VX54-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• With Electric Drive Power and Control Electronics -JX1-.

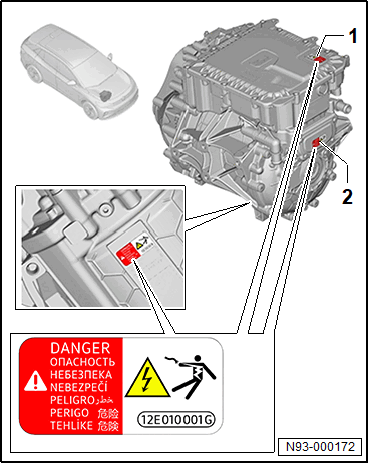

-- Warning label on the Three-Phase Current Drive 2 -VX97-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• With Electric Drive Power and Control Electronics 2 -JX4-.

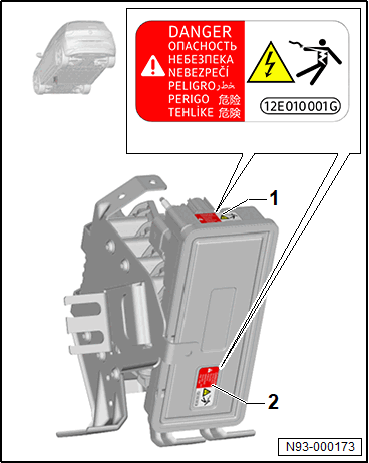

-- Warning label on Heating Element (PTC) 3 -Z132-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

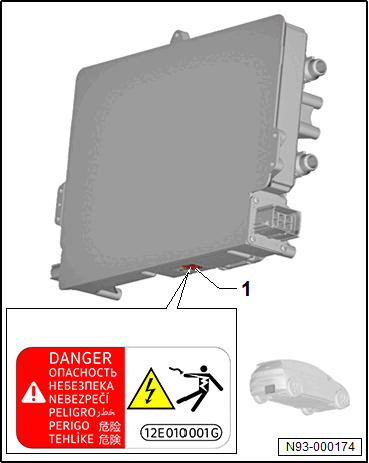

-- Warning label on High-Voltage Battery Charger 1 -AX4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
