Windshield Washer Fluid Level Sensor, Removing And Installing, Washer Fluid Reservoir In Front Left Wheel Housing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Place the commercially available collecting device under the washer fluid reservoir.

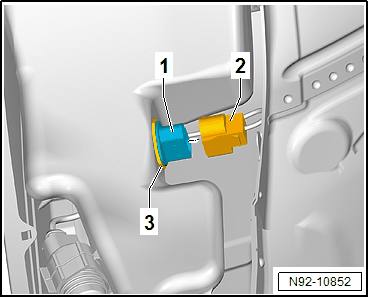

-- Disconnect the connector -2-.
-- Remove the Windshield Washer Fluid Level Sensor -G33- -1- from the washer fluid reservoir.
-- Remove the seal -3- from the washer fluid reservoir.
