Windshield Wiper Motor V, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
If the windshield wiper motor is replaced, the test plan for replacing the windshield wiper motor must be performed.
-- Perform the "windshield wiper motor, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
CAUTION:
There is a risk of bruising by moving and turning components of the windshield wiper mount.
- Do not hold the windshield wiper mount at locations with turning components.

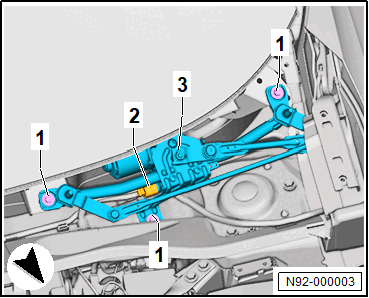

-- Remove the bolts -1-.
-- Disconnect the connector -2-.
-- Remove the windshield wiper motor -3-.
