Windshield Wiper Arm, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

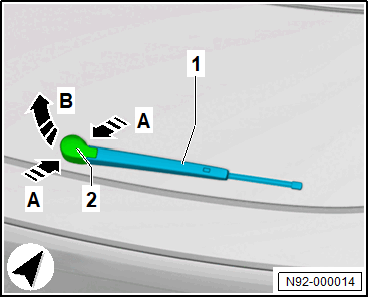

-- Press together the cap -2- from the wiper arm -1- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold the cap -2- in the -direction of the arrow B- and remove.

-- Loosen the nut -3- several turns.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

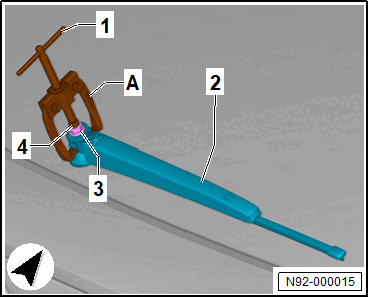

-- Position the Puller - Wiper Arm Kit - Puller 5:T10369/5 -A- on the wiper arm -2-.

-- Position the thrust piece -4- on the windshield wiper motor shaft.

-- Turn the spindle -1- clockwise until the windshield wiper arm -2- is removed.

-- Remove the puller -A- from the wiper arm -2-.

-- Remove the nut -3-.

-- Remove the windshield wiper arm -2-.
