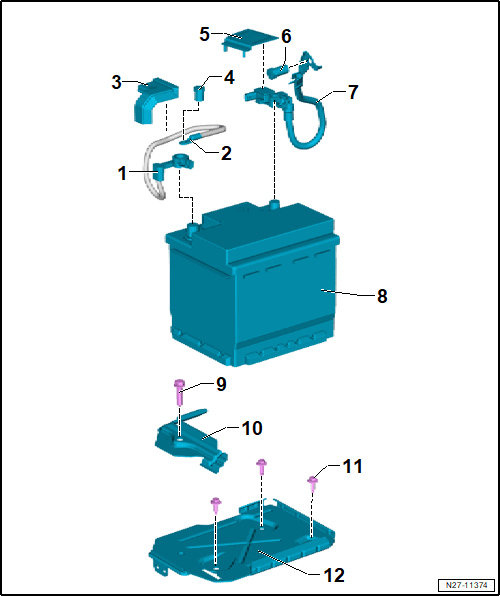

Overview - Battery
- Positive Terminal Battery Terminal Clamp
- 5 Nm
- Positive Cable
- Positive Terminal Cover
- Positive Jump Start, Nut
- 20 Nm
- Negative Terminal Cover
- Negative Jump Start, Nut
- 20 Nm
- Ground Wire
- 5 Nm
- With battery terminal clamp for the negative terminal
- With Battery Monitoring Control Module -J367-
- Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING .
- Refer to BATTERY MONITORING CONTROL MODULE J367, INITIAL OPERATION .
- Battery -A-
- Refer to Battery A, Removing and Installing .
- Refer to Battery, Disconnecting and Connecting .
- Bolt
- 20 Nm
- Bracket
- Bolt
- 9 Nm
- Quantity: 3
- Battery Tray
- Refer to Battery Tray, Removing and Installing .
