Battery A, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
If the battery is replaced, the battery data must be recorded before installing by writing it down, taking a picture or via a QR code scan. The QR code can be read with the Bar Code Scanner: VAS6161/1A .
Continuation
-- Place the protecting plate on the battery.

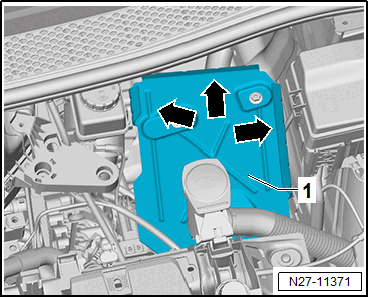

-- Insert the battery into the battery tray -1- so that the battery clamping strip touches the rear and side stops -arrows-.
Conditions
- The battery must be secured so it does not move toward the rear or to the sides.
-- Install the bracket -2-.
Conditions
- The locking mechanism on the bracket must engage in the recess on the battery clamping strip.
-- Tighten the bolt -3-.
-- Check the battery -1- for secure fit.

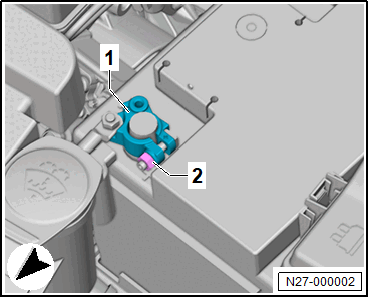

-- Attach the positive terminal battery clamp -1-.
-- Tighten the nut -2-
-- Connect the battery. Refer to Battery, Disconnecting and Connecting .
If the battery was replaced, then perform the replacement test plan.
Continuation
-- Perform the 12V battery, replacing function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
