Right And Left Front Abs Wheel Speed Sensor G45/G47, Removing And Installing: Removing

The Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47- will be called speed sensor in the information that follows.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Raise the vehicle.

-- Disconnect the connector -3- from the front speed sensor -1-.

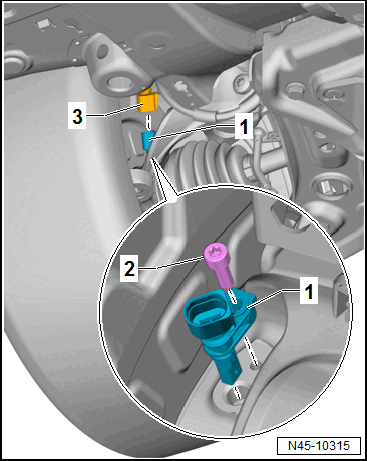

Fig 1: Exploded View Of Speed Sensor With Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and pull the front speed sensor -1- out of the wheel bearing housing.
