Overview - Screen Separator

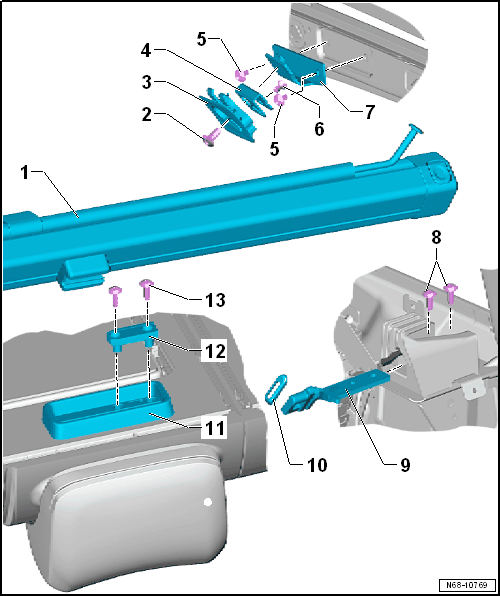

Fig 1: Exploded View Of Screen Separator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Screen Separator
- Removing and Installing. Refer to SCREEN SEPARATOR, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Mount Trim
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNTING EYE, REMOVING AND INSTALLING .
Screen Separator Mounting Eye
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNTING EYE, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
- Quantity: 2
Bolt
- 1.5 Nm
Mount Bracket
- Allocation. Refer to the Parts Information.
- Removing
  -- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING, WAGON .

  -- Remove the screws -5- and the mount mounting eye.
Bolt
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Screen Separator Bracket
- Removing and Installing. Refer to SCREEN SEPARATOR BRACKET, REMOVING AND INSTALLING .
Rubber Grommet
- Slide over the screen separator bracket and insert into the luggage compartment side trim panel
Mount
- On the right 2/3 rear seat backrest
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNT, REMOVING AND INSTALLING .
Selector
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNT, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
  NOTE:
  Remove the locking fluid from the bolt threads using a wire brush. Then insert the bolts with locking compound. Refer to the Parts Information.

  Remove the locking fluid from the bolt holes, for example using a thread tap.
