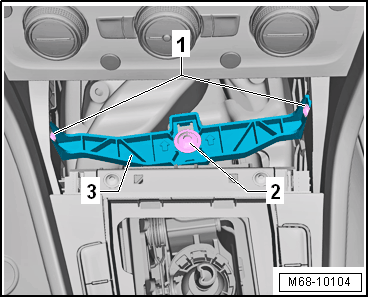

Center Console Bracket, Removing And Installing: Removing

-- Remove the screw -1- on the left and right.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Pivot the securing bracket -3- out of the center console.
