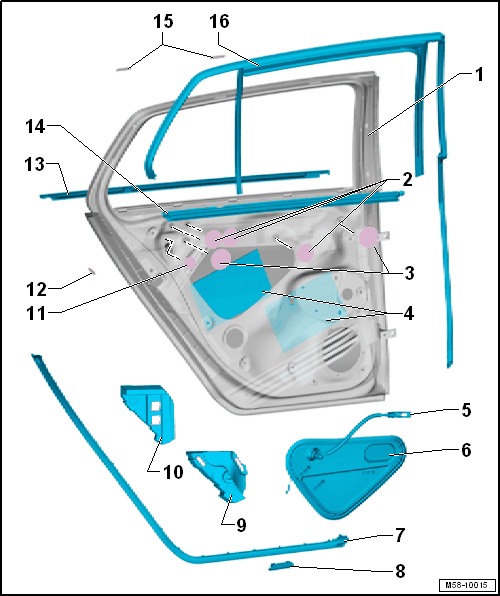

Overview - Door Components
NOTE:
The illustration shows the left side. The right side is done the same.
- Rear Door
- Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
- Sticker
- Quantity: 3
- 28 mm diameter
- Use commercially available duct tape if needed
- Sticker
- Quantity: 2
- 32 mm diameter
- Use commercially available duct tape if needed
- Insulation
- self-adhesive
- Installing:
-- Cut to size if necessary, 200 mm x 100 mm. Position as shown in the image.
-- Warm using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A and then press firmly onto the outer door panel.
- Release Cable
- Door Inner Cover
- Removing and Installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
- Outer Door Seal
- Secured with clips on the door
- Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
- Bracket
- Component of the outer door seal
- Inner Exterior Padding
- Removing and Installing. Refer to EXTERIOR PADDING, REMOVING AND INSTALLING .
- Outer Exterior Padding
- Removing and Installing. Refer to EXTERIOR PADDING, REMOVING AND INSTALLING .
- Sticker
- Quantity: 1
- 19 mm diameter
- Use commercially available duct tape if needed
- Sticker
- Quantity: 1
- 15 mm diameter
- Use commercially available duct tape if needed
- Outer Window Shaft Strip
- Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Inner Window Shaft Strip
- Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Sticker
- Quantity: 2
- 15 mm x 50 mm
- Use commercially available duct tape if needed
- Window Guide
- Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
