Overview - Rear Side Window, Wagon

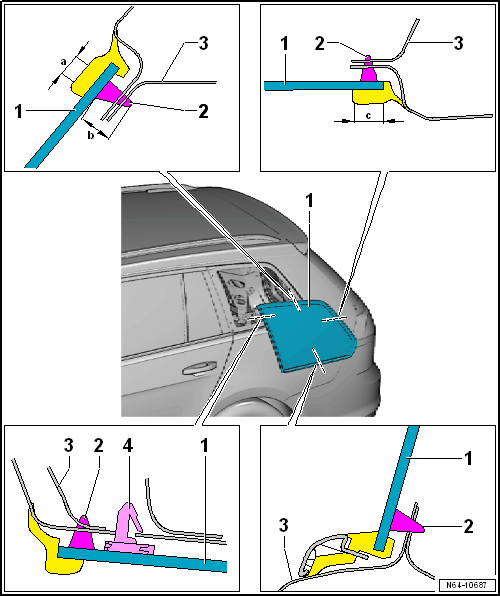

Fig 1: Exploded View Of Rear Side Window
GWWN64-10687Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Side Window
  2. PUR Adhesive Sealant
    • Bead diameter: Height = 10 mm -dimension b-, width = 6.5 mm -dimension a- (including pre-coating, residual material on window glass and window glass flange)
    • The width of the glass/paint primer application is 14 mm -dimension c-
    • Minimum Curing Time
  3. Body Flange
  4. Guide Clip
    • Quantity: 2
