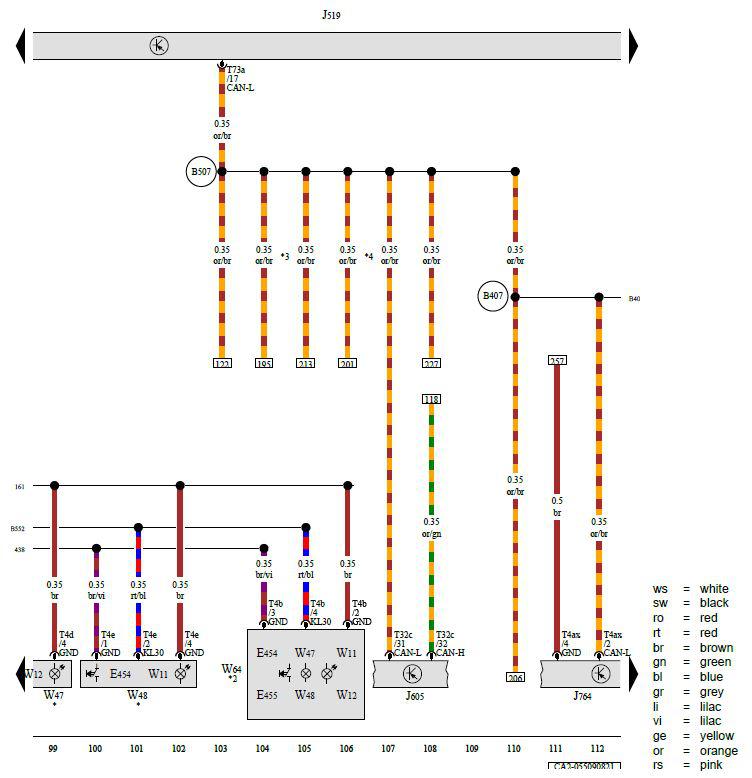

Left Rear Reading Lamp Switch, Right Rear Reading Lamp Switch, Vehicle Electrical System Control Module, Rear Lid Control Module, Electronic Steering Column Lock Control Module, Left Rear Reading Lamp, Right Rear Reading Lamp, Left Rear Interior Lamp, Right Rear Interior Lamp, Interior Lamp
E454 - Left Rear Reading Lamp Switch
E455 - Right Rear Reading Lamp Switch
J519 - Vehicle Electrical System Control Module
J605 - Rear Lid Control Module
J764 - Electronic Steering Column Lock Control Module
T4ax - 4-Pin Connector, Black
T4b - 4-Pin Connector, Black
T4d - 4-Pin Connector, Brown
T4e - 4-Pin Connector, Black
T32c - 32-Pin Connector, Naturally Cloudy
T73a - 73-Pin Connector, Black
W11 - Left Rear Reading Lamp
W12 - Right Rear Reading Lamp
W47 - Left Rear Interior Lamp
W48 - Right Rear Interior Lamp
W64 - Interior Lamp
161 - Ground Connection (in Raised Roof Wiring Harness)
438 - Ground Connection 3 (in Roof Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
B552 - Positive Connection 2 (in Roof Wiring Harness)
* - For Vehicles with a Sunroof
*2 - For Vehicles Without a Sliding/Tilting Sunroof
*3 - For Vehicles without Peripheral Camera
*4 - For Vehicles with Peripheral Camera
