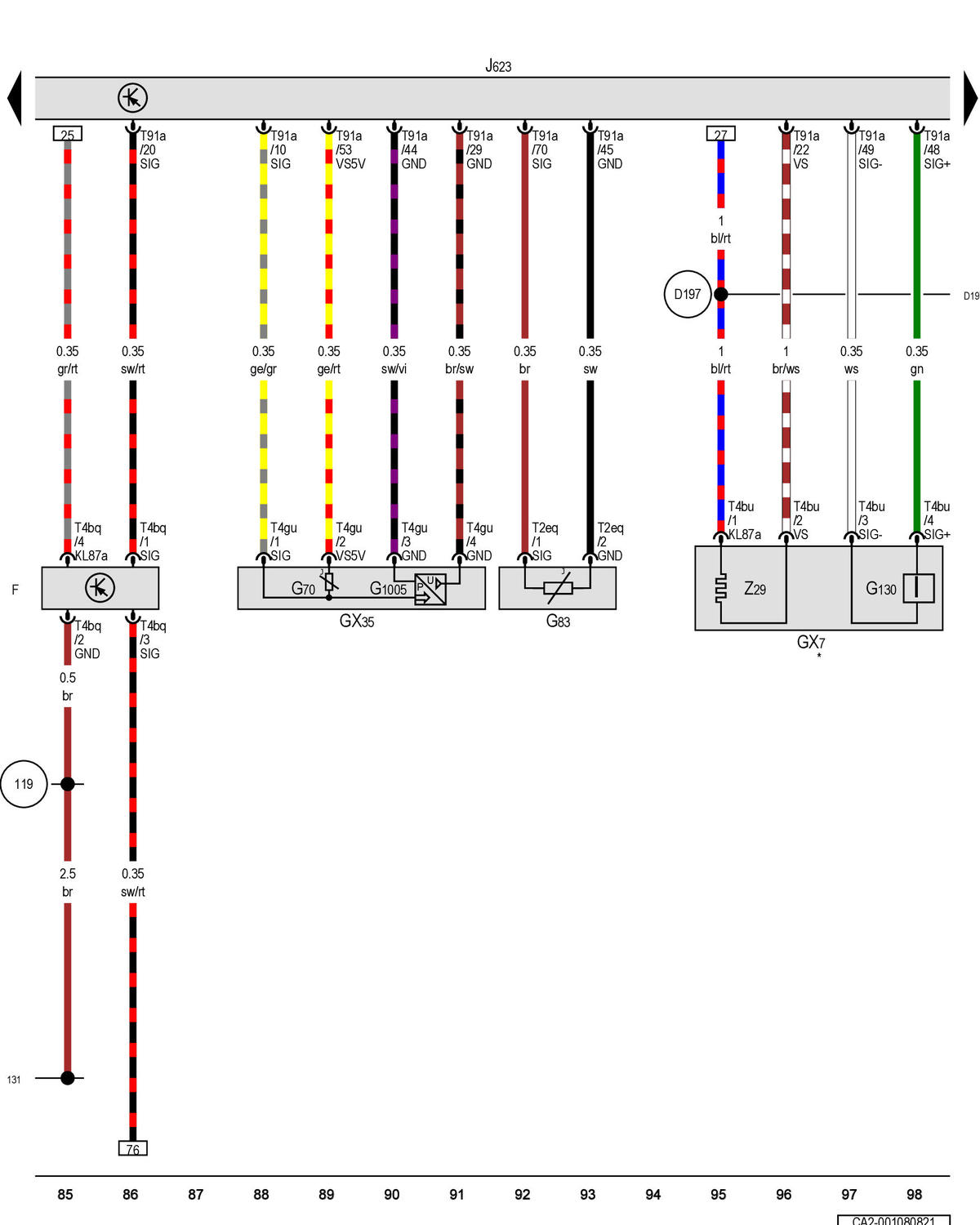

Brake Lamp Switch, Oxygen Sensor 1 After Catalytic Converter, Mass Airflow Measurement Module, Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F

Brake Lamp Switch Type:BT, Slpdok:, Aim:BTF

GX7

Oxygen Sensor 1 After Catalytic Converter Type:BT, Slpdok:, Aim:BTGX7

GX35

Mass Airflow Measurement Module Type:BT, Slpdok:, Aim:BTGX35

G70

Mass Airflow Sensor Type:BT, Slpdok:, Aim:BTG70

G83

Engine Coolant Temperature Sensor on Radiator Outlet Type:BT, Slpdok:, Aim:BTG83

G130

Oxygen Sensor After Catalytic Converter

G1005

Mass Airflow Sensor Temperature Sensor

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T2eq

2-Pin Connector, Black

T4bq

4-Pin Connector, Black

T4bu

4-Pin Connector, Black

T4gu

4-Pin Connector, Black

T91a

91-Pin Connector, Black

Z29

Heater for Oxygen Sensor 1 After Catalytic Converter

119

Ground Connection 1 (in Headlamp Wiring Harness)

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

D197

Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Pre-Wired Component
