ABS Control Module

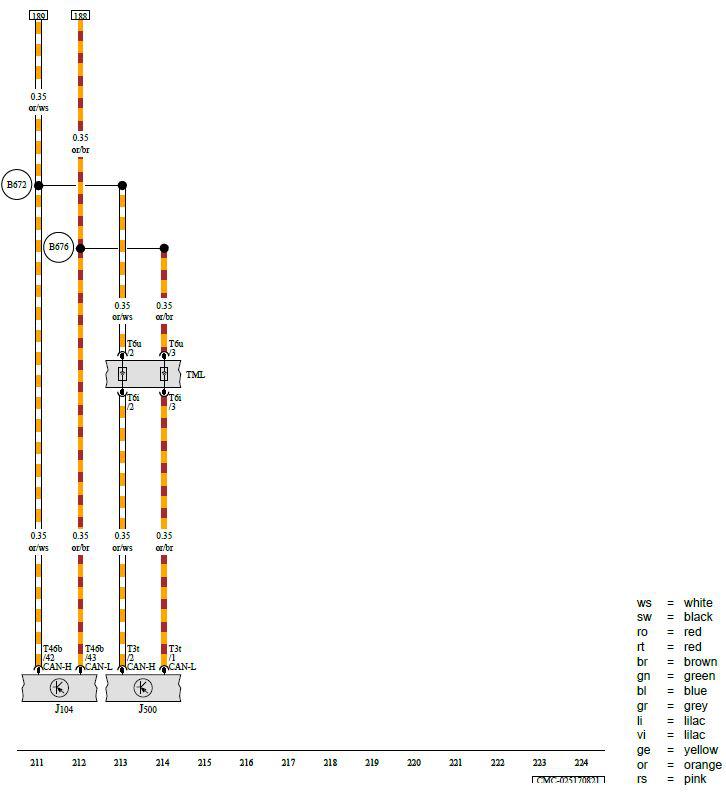

G00609665Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104 -  ABS Control Module

J500 -  Power Steering Control Module

T3t -  3-Pin Connector, Black

T6i -  6-Pin Connector, Black

T6u -  6-Pin Connector, Black

T46b -  46-Pin Connector, Black

TML -  Coupling Point in Engine/Motor Compartment, Left

B672 -  Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B676 -  Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
