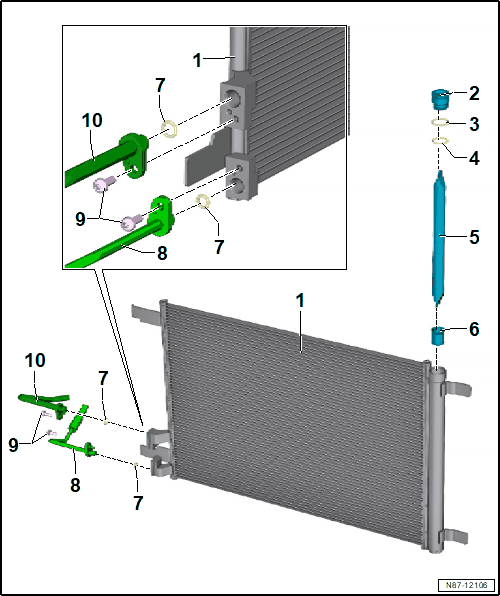

Overview - Condenser, DENSO

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condenser
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
Plug
- Denso condenser 5 Nm
- Replace if damaged
- With seals
- There are different versions. Refer to the Parts Information.
Seal
- Replace after removing.
- Coat with refrigerant oil before installing
Seal
- Replace after removing.
- Coat with refrigerant oil before installing
Desiccant Bag/Dryer Cartridge
- There are different versions. Refer to the Parts Information.
- Removing and Installing:
  - Denso condenser. Refer to DESICCANT BAG, REMOVING AND INSTALLING, DENSO CONDENSER .
  NOTE:
  Under certain conditions, the desiccant bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R1234yf. Refer to COMPONENTS, REPLACING .

  Under certain conditions, the desiccant bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R134a. Refer to the appropriate service information .
Filter
- There are different versions. Refer to the Parts Information.
Seal
- Replace after removing.
- Coat with refrigerant oil before installing
Refrigerant Line
- To the expansion valve
Bolt
- 8 Nm
Refrigerant Line
- From the A/C compressor
