Rear Door Window, Removing And Installing: Installing
WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

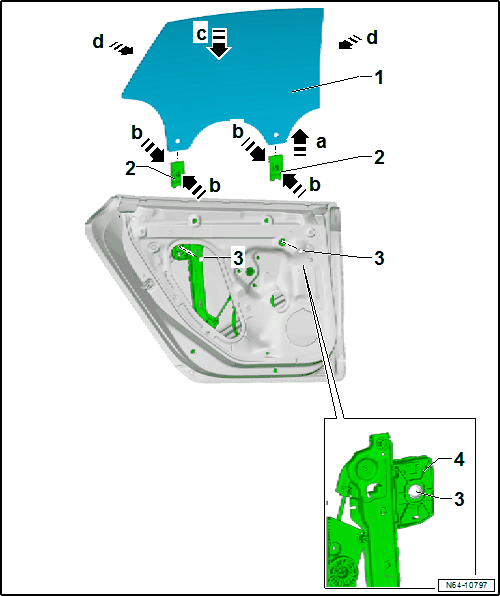

-- Attach the clip -2- to the door window -arrow a- and fold it up -arrows b-.
-- Guide the door window -1- into the door -arrow c-. Make sure the door window is inserted in the window guide correctly.
-- Without using any pressure, guide the door window -arrow c- into the clamping brackets -4-.
-- Center the door window -d arrows-.
-- Tighten the bolts -3-.
-- Replace the adhesive pads, if necessary. Refer to OVERVIEW - DOOR COMPONENTS for diameter.
-- Check the height and length of the door window and adjust if necessary. Refer to REAR DOOR WINDOW, ADJUSTING .
-- A function test must be performed before the door trim panel is installed.
