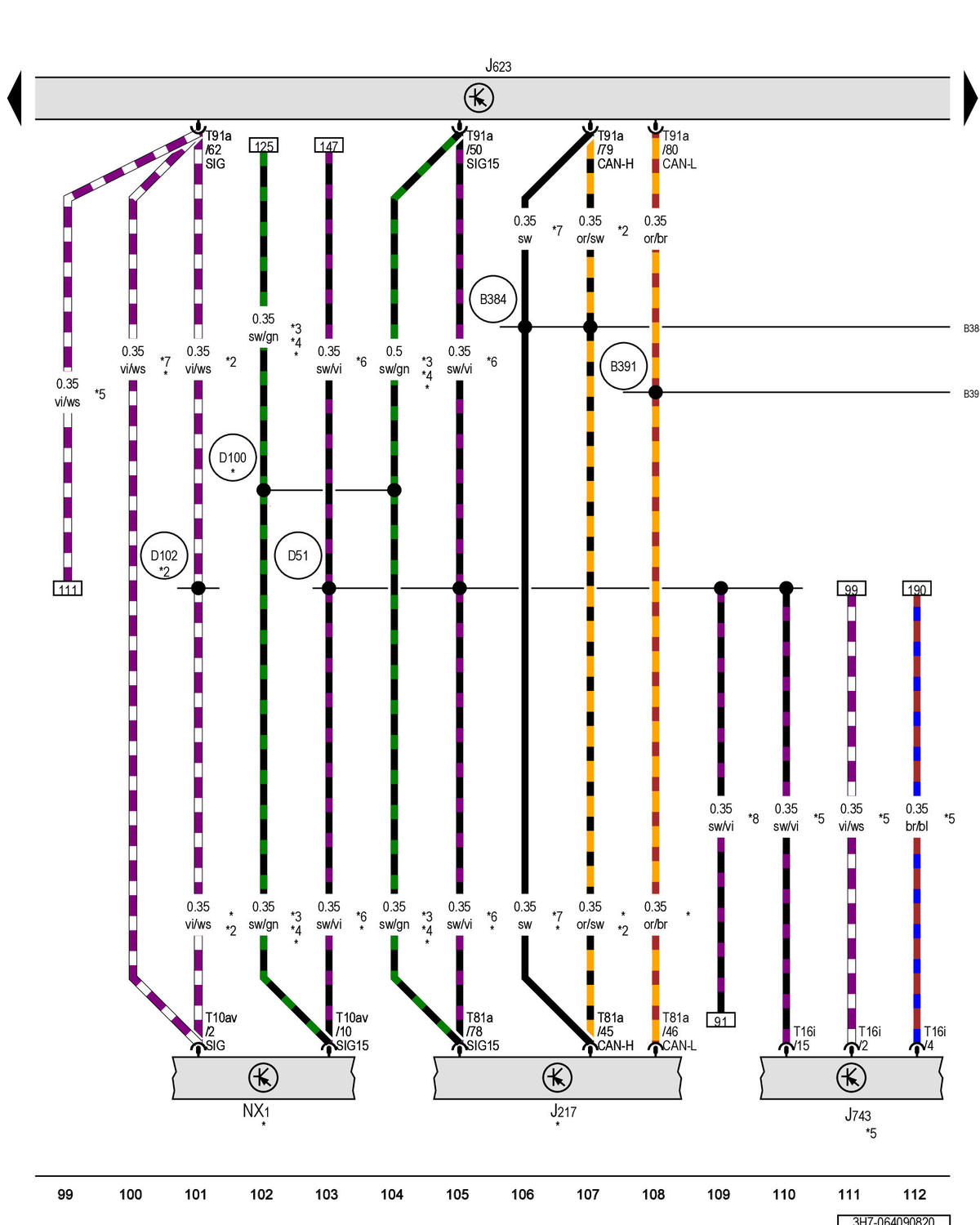

Transmission Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC, Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217

Transmission Control Module

J623

Engine/Motor Control Module

J743

Dual-Clutch Transmission Mechatronic

NX1

Transmission

T10av

10-Pin Connector, Black

T16i

16-Pin Connector, Black

T81a

81-Pin Connector, Black

T91a

91-Pin Connector, Black

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

D51

Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

D100

Positive Connection 2 (15) (in Engine/Motor Compartment Wiring Harness)

D102

Connection 2 (in Engine/Motor Compartment Wiring Harness)

*

For USA Only

*2

Through July 2018

*3

For Vehicles with Engine Remote Start

*4

For Vehicles with Engine Remote Start Setup

*5

For Vehicles with Automatic Transmission (DSG)

*6

For Vehicles Without Engine Remote Start

*7

From July 2018

*8

For Vehicles with Electromechanical Brake Booster
