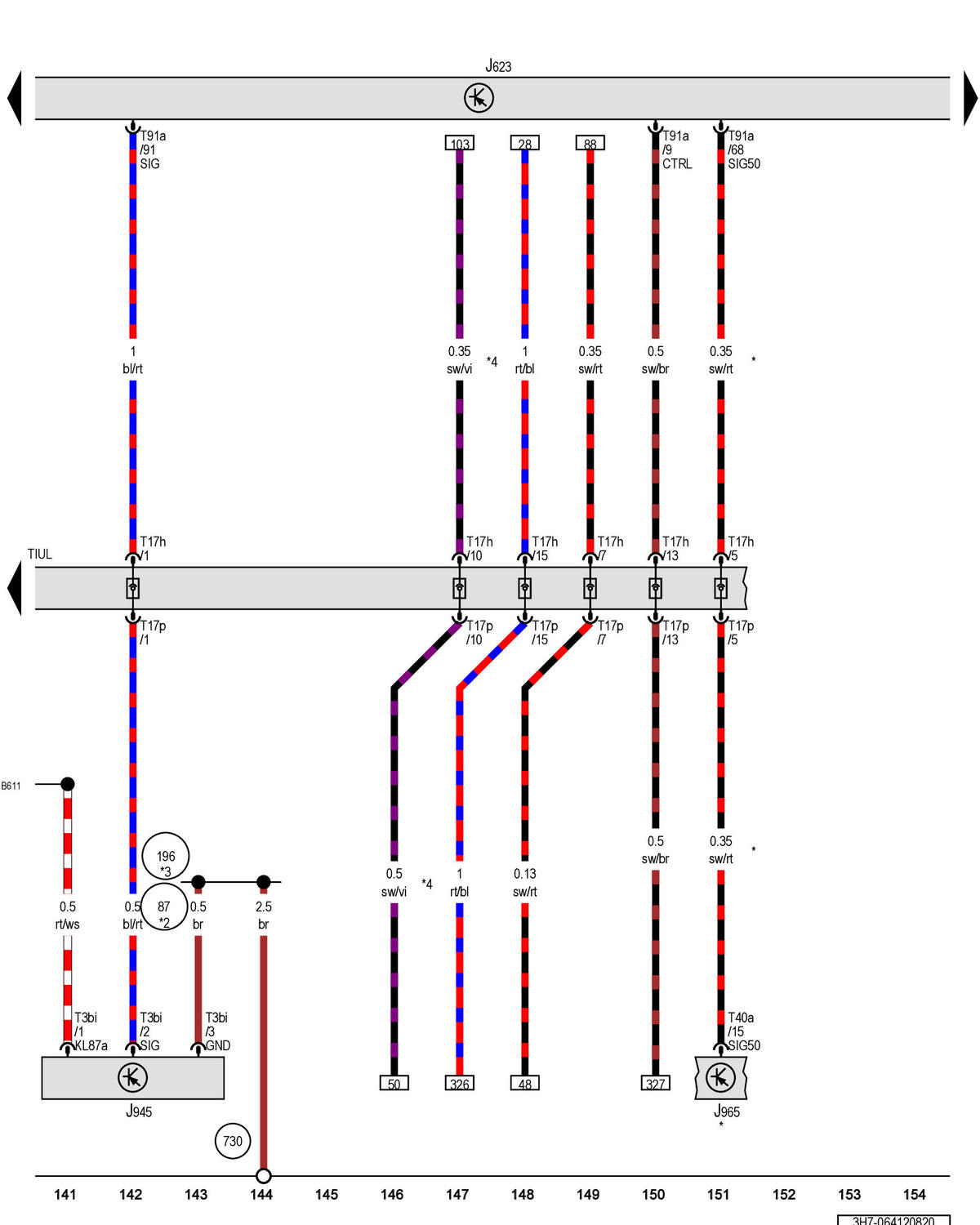

Engine/Motor Control Module, Exhaust Door Control Unit 2, Access/Start System Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

J945

Exhaust Door Control Unit 2

J965

Access/Start System Interface

T3bi

3-Pin Connector, Black

T17h

17-Pin Connector, Blue

T17p

17-Pin Connector, Blue

T40a

40-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

87

Ground Connection 2 (in Rear Wiring Harness)

196

Ground Connection 3 (in Rear Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B611

Connection 7 (in Interior Wiring Harness)

*

For Vehicles with Access/Start Authorization System

*2

Coupe

*3

Sportback

*4

For Vehicles Without Engine Remote Start
