Adjusting Angle

Special tools and workshop equipment required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

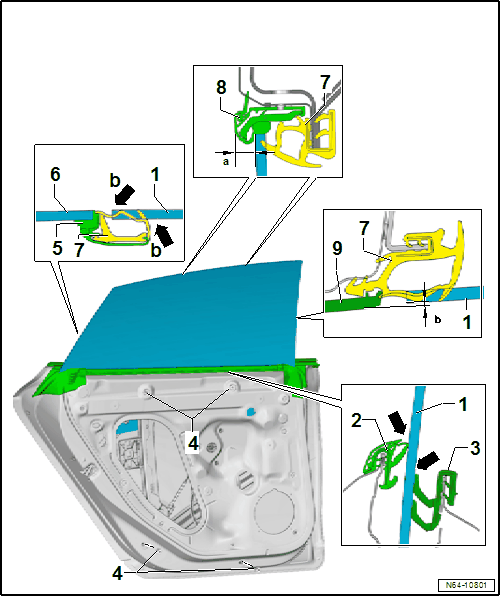

Adjustment Dimensions

The door window must enter 10 mm -dimension a- into the seal -8- of the window molding.
In the seal -7- on the rear side window -6-, the door window -1- must rest on the outside -arrow b-.
The offset with to the B-pillar trim -9- is 1 mm -dimension b-.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Loosen both upper nuts -4-. Set the dimensions using both upper adjusting screws in the nuts -4-.

-- Tighten both upper bolts -4-.

The door window must extend in the center -a arrows- between inner -3- and outer window recess cover -2-.

-- Loosen the lower nut -4-. Set the dimensions using the lower adjusting screw in the nut -4-.

-- Tighten the lower bolt -4-.

Tightening Specifications
