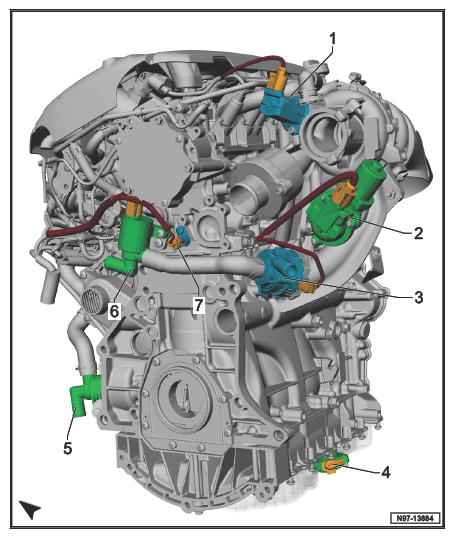

Left View

  1. Turbocharger recirculation valve -N249-
  2. Charge air pressure actuator -V465-
    • Charge air pressure actuator position sensor -G581-
  3. Heater support pump -V488-
  4. Oil level thermal sensor -G266-
  5. Transmission fluid cooling pump -V478-
  6. Coolant shut-off valve -N82-
  7. Engine coolant temperature sensor -G62-
G12711229Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
