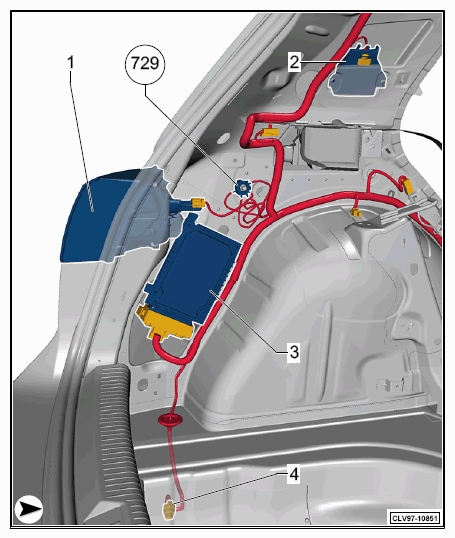

Trunk, Left

  1. Left tail lamp -MX3-
  2. Engine sound generator control module -J943-
  3. Electronic damping control module -J250-
  4. Engine sound generator actuator 1 -R257-
G12709808Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
