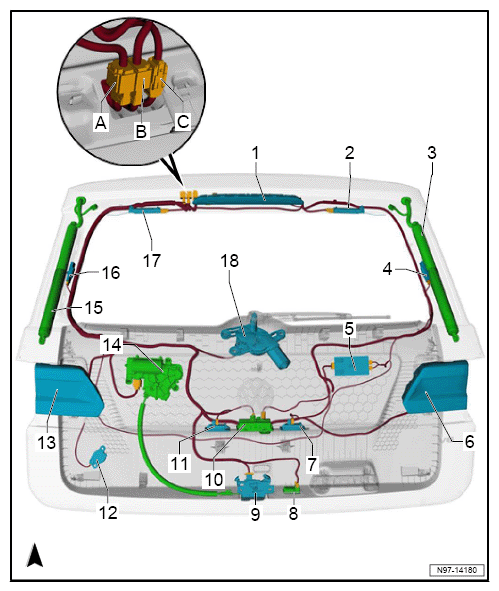

Comp. LOC.: Vehicle Rear: Tailgate

1. A  - 10-Pin Connector -T10B-, Brown/10-Pin Connector -T10S-, Brown
2. B  - 10-Pin Connector -T10A-, Black/10-Pin Connector -T10R-, Black
3. C  - 10-Pin Connector -T10C-, Blasck/10-Pin Connector -T10Q-, Black
4. 1  - High-Mounted Brake Lamp Bulb -M25-
5. 2  - Right Antenna Module -R109-
6. 3  - Rear Lid Motor 2 -V445-
7. 4  - FM Frequency Filter In Negative Wire -R178-
8. 5  - AM Frequency Filter -R177-
9. 6  - Right Tail Lamp 2 -MX6-
10. 7  - Right License Plate Lamp -X5-
11. 8  - Rear Lid Lock Button In Luggage Compartment -E406-
12. 9  - Rear Lid Lock Unit -VX25-
13. 10  - Rear Lid Handle -EX37-
14. 11  - Left License Plate Lamp -X4-
15. 12  - Rear Lid Warning Buzzer -H32-
16. 13  - Left Tail Lamp 2 -MX5-
17. 14  - Rear Lid Closing Aid -VX16-
18. 15  - Rear Lid Motor 1 -V444-
19. 16  - FM Frequency Filter In Positive Wire -R179-
20. 17  - Left Antenna Module -R108-
21. 18  - Rear Window Wiper Motor -V12-
