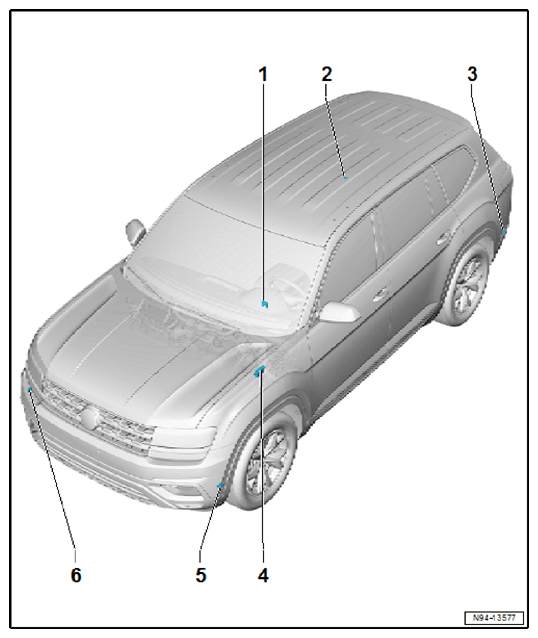

11.1 Overview - Parallel Parking Assist
- Parallel Parking Assistance Button - E581-
- Removing and installing. Refer to Parallel Parking Assistance Button E581 (Removing and Installing).
- Right Rear Parallel Parking Assistance Sensor - G717-
- Removing and installing. Refer to 11.4 Rear Sensor, Removing and Installing
- Left Rear Parallel Parking Assistance Sensor - G716-
- Removing and installing. Refer to 11.4 Rear Sensor, Removing and Installing
- Parallel Parking Assistance Control Module - J791-
- Removing and installing. Refer to 11.2 Parallel Parking Assistance Control Module - J791-, Removing And Installing
- Left Front Parallel Parking Assistance Sensor - G568-
- Removing and installing. Refer to 11.3 Front Sensor, Removing And Installing
- Right Front Parallel Parking Assistance Sensor - G569-
- Removing and installing. Refer to 11.3 Front Sensor, Removing And Installing .
