Component Location Overview - Adaptive Cruise Control (Acc)

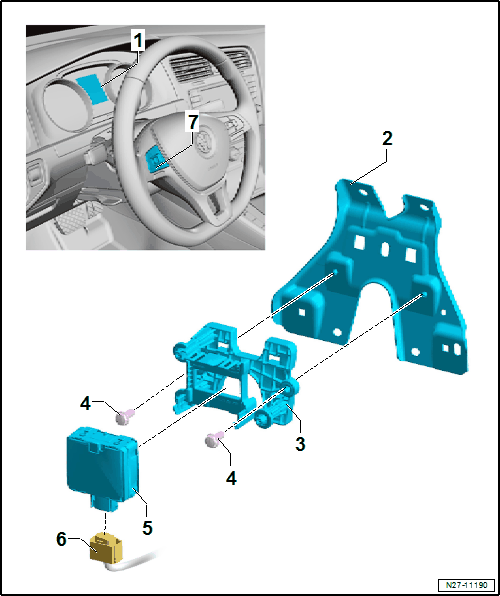

Fig 1: Exploded View Of Adaptive Cruise Control (Acc)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Cluster -KX2-
   • With Instrument Cluster Control Module -J285-
   • Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
2. Support, Lock Carrier
   • Refer to LOCK CARRIER .
   • Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL, REMOVING AND INSTALLING .
3. Retaining Plate with Adapter Frame
   • Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL, REMOVING AND INSTALLING AT ADAPTER FRAME .
   • Serves as the mount for the Distance Regulation Control Module -J428-
   • With Distance Regulation Control Module -J428- adjusting screw
4. Bolt
   • 8 Nm.
   • Quantity: 2
5. Distance Regulation Control Module -J428-
   • Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL, REMOVING AND INSTALLING .
   • Calibrating. Refer to ADAPTIVE CRUISE CONTROL, CALIBRATING .
6. Connector
7. Adaptive Cruise Control Button -E357-
   • Is integrated in the multifunction steering wheel.
   • Removing and Installing. Refer to MULTIFUNCTION STEERING WHEEL .
