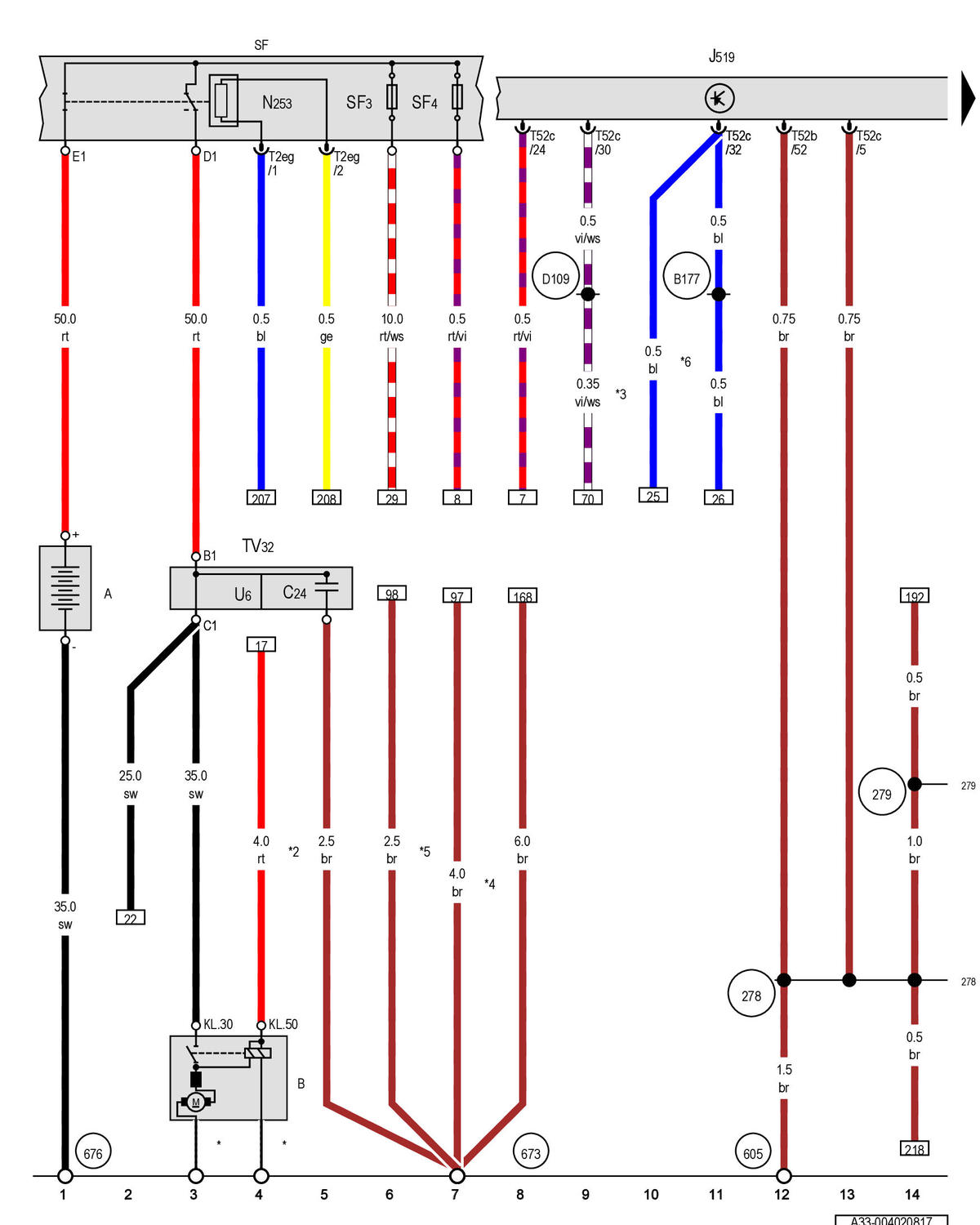

Starter, Vehicle Electrical System Control Module, Battery Interrupt Igniter, Fuse Panel F, Battery Jump Start Terminal: Notes

GWWA33-004020817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
