Subwoofer -R211-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2017 Volkswagen Golf SportWagen, 2017 Volkswagen Golf Alltrack, 2016 Volkswagen Golf SportWagen, and 2015 Volkswagen Golf SportWagen. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Then remove the ignition key, if equipped.

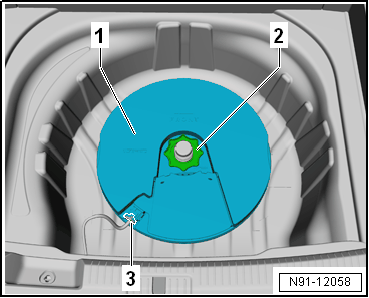

-- Fold up the luggage compartment floor.
-- Release and disconnect the connector -3- from the Subwoofer -R211- -1-.
-- Remove the bolt -2- on the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward.
