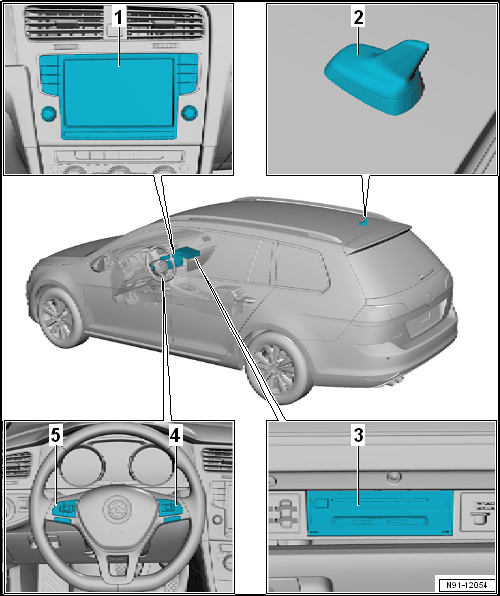

Component Location Overview - Navigation System
WARNING: This page is about a different car, the 2017 Volkswagen Golf SportWagen, 2017 Volkswagen Golf Alltrack, 2016 Volkswagen Golf SportWagen, and 2015 Volkswagen Golf SportWagen. However, it is still accessible from the selected car via links, so may be relevant.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
- Right Multifunction Buttons On Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL - E441- / - E440-, REMOVING AND INSTALLING .
- Left Multifunction Buttons On Steering Wheel -E440-
- Removing and Installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL - E441- / - E440-, REMOVING AND INSTALLING .
