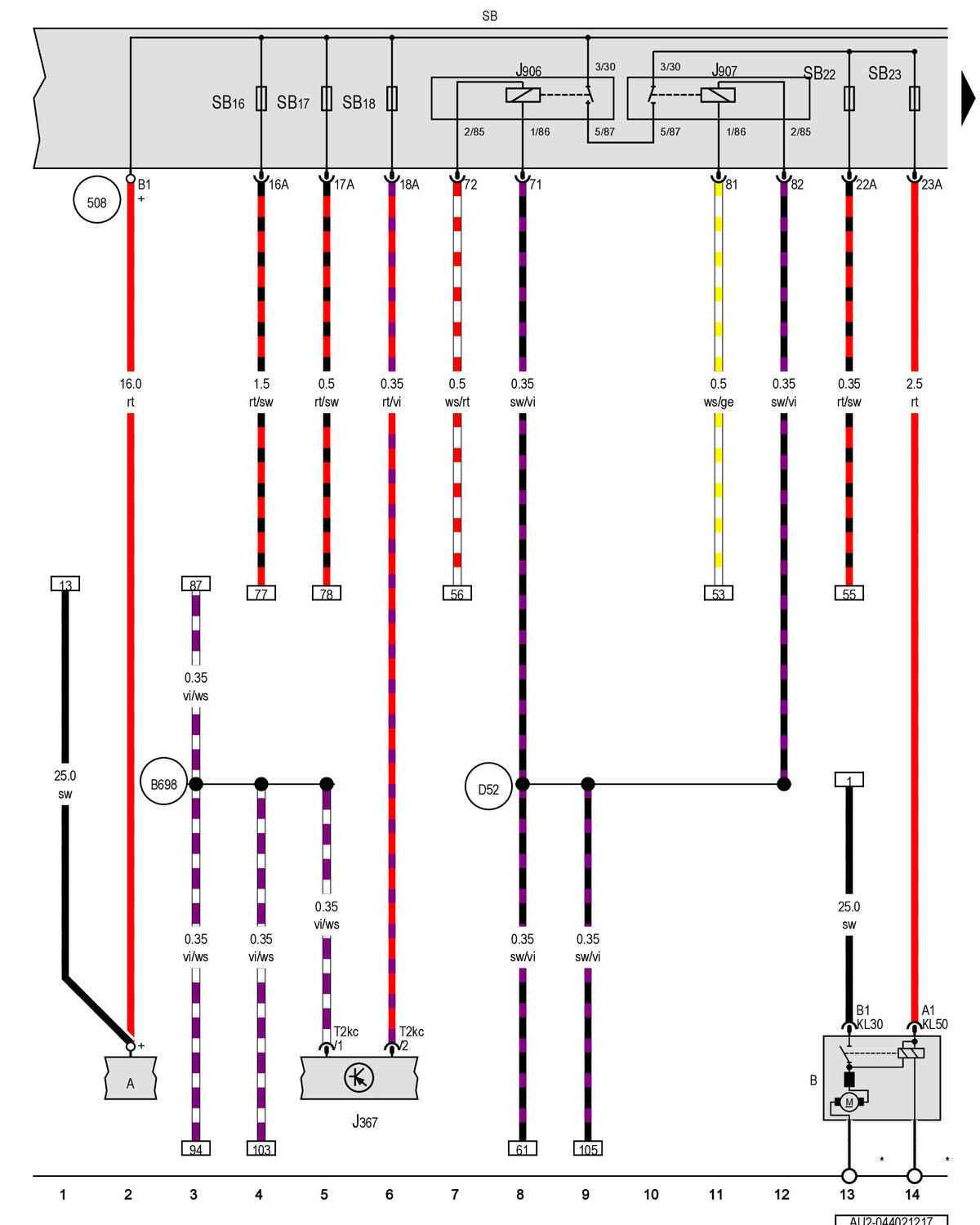

Starter, Battery Monitoring Control Module, Starter Relay 1, Starter Relay 2, Fuse Panel B: Notes

GWWAU2-044021217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
