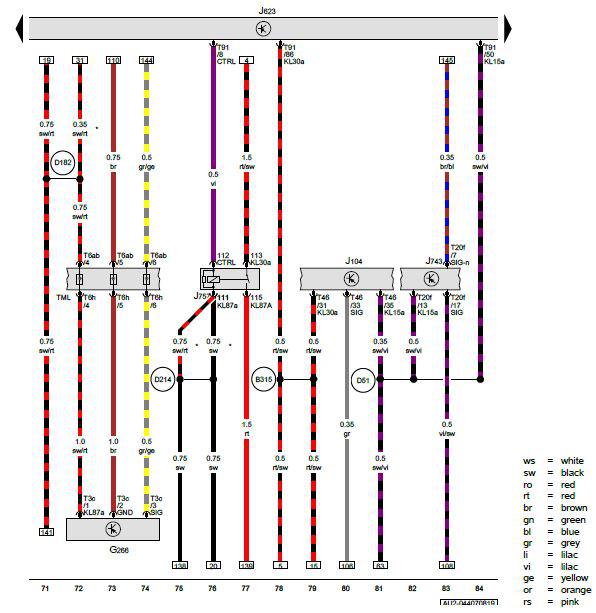

Oil Level Thermal Sensor, Abs Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC, Engine Component Power Supply Relay: Notes

G00604542Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
