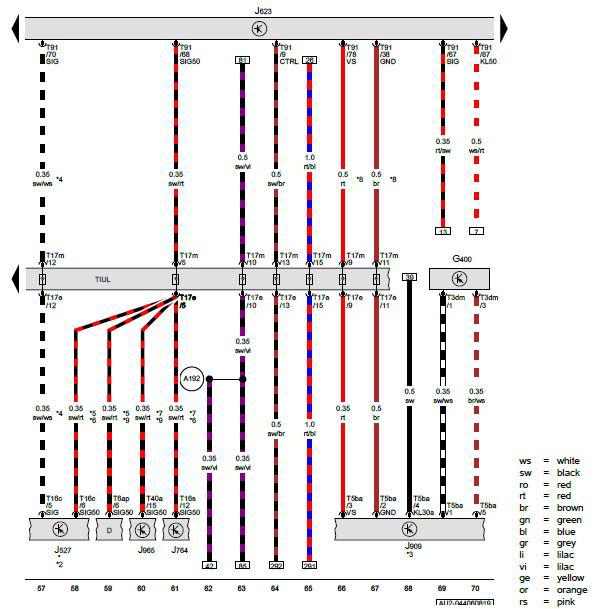

Ignition/Starter Switch, Steering Column Electronics Control Module, Engine/Motor Control Module, Electronic Steering Column Lock Control Module, Access/Start System Interface: Notes

G00604541Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
