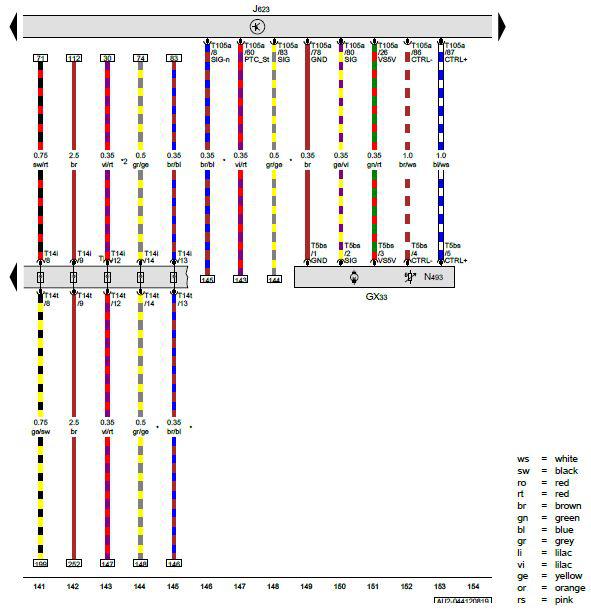

Engine Temperature Control Module, Engine/Motor Control Module, Engine Temperature Control Actuator: Notes

G00604545Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
