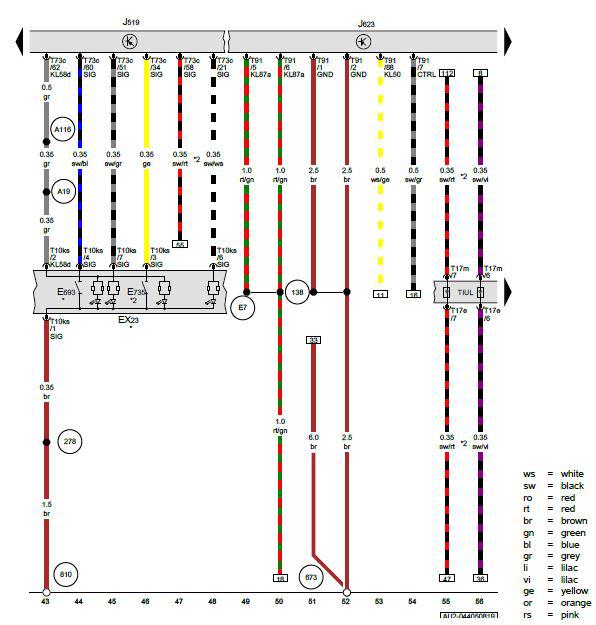

Center Console Switch Module 1, Start/Stop Mode Button, Driving Profile Selection Button, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes

G00604540Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
