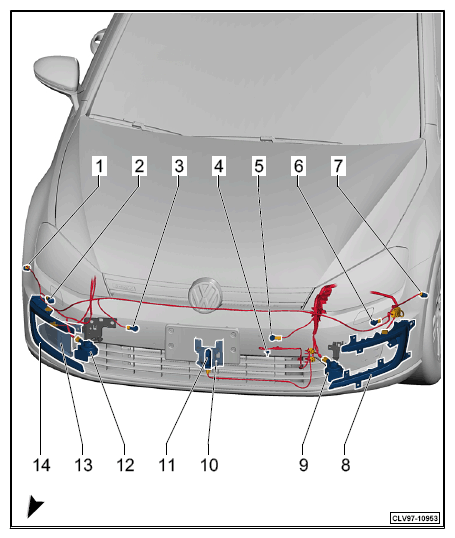

Front Bumper

  1. Right front parallel parking assistance sensor -G569-
  2. Right front parking aid sensor -G252-
  3. Right front center parking aid sensor -G253-
  4. Outside air temperature sensor -G17-
  5. Left front center parking aid sensor -G254-
  6. Left front parking aid sensor -G255-
  7. Left front parallel parking assistance sensor -G568-
  8. Left daytime running lamp and position lamp LED module -L176-
  9. High tone horn -H2-
  10. Distance regulation control module -J428-
  11. Radiator shutter motor -V544-
  12. Low tone horn -H7-
  13. Engine sound generator actuator 1 -R257-
  14. Right daytime running lamp and position lamp LED module -L177-
G12754132Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
