Tie Rods, Checking Play, Attachment And Ball Joint Boots

Procedure

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With the vehicle raised (wheels off ground), check the play by moving the tie rods and wheels. Play (target): no play.

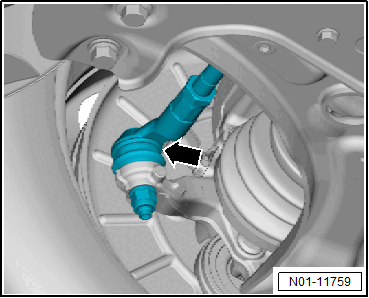

-- Check the tie rod ball joint boots -arrow- for damage and proper seating.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

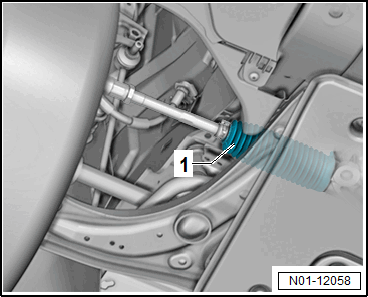

-- Check all around the ball joint boots -1- of the steering gear for damage and proper seating.

-- Visually inspect the area near the steering gear and tie rods for leaks and damage.
