Filling The Gear Oil

• All safety precautions and test conditions must be followed.

-- Route the Charging Device for AWD Clutch Coupling 2:VAS6291 A  hose upward.

-- Install the Charging Device for AWD Clutch Coupling 2 - Adapter 3:VAS6291/3  all the way.

-- Lock the filling device hose with the Charging Device for AWD Clutch Coupling 2 - Adapter 3:VAS6291/3  .

-- Check, if the valve -arrow- is closed.

-- Install the oil container -A- on the Charging Device for AWD Clutch Coupling 2:VAS6291 A  .

-- Open the valve -arrow- and lift the oil container, as shown.

• When gear oil flow out of the Charging Device for AWD Clutch Coupling 2 - Adapter 3:VAS6291/3  , the gear oil level is OK.

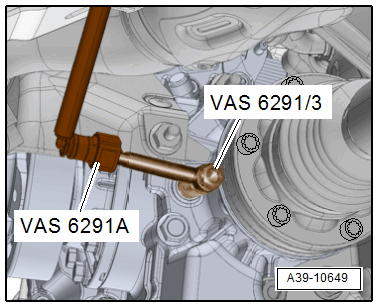

  Fig 3: Charging Device For Haldex Coupling 2 - Adapter 3VAS6291/3

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Store the oil container so that the excess oil flows back into the oil container.

-- If no more oil flows out push the catch and remove the filling device.

-- Remove the Charging Device for AWD Clutch Coupling 2 - Adapter 3:VAS6291/3  .

-- Install the used fluid filler plug and loosely tighten.

-- Start the engine, engage a gear and let the transmission turn for approximately two minutes.

-- Turn off the engine and remove the oil filler hole plug.

-- Check the oil level. If required, fill the gear oil again to the lower edge of the filler hole.

• Specified value: gear oil level up to the lower edge of the oil filler hole.
