Section 973 (OEM Electrical Wiring Diagram Introduction): Introduction

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

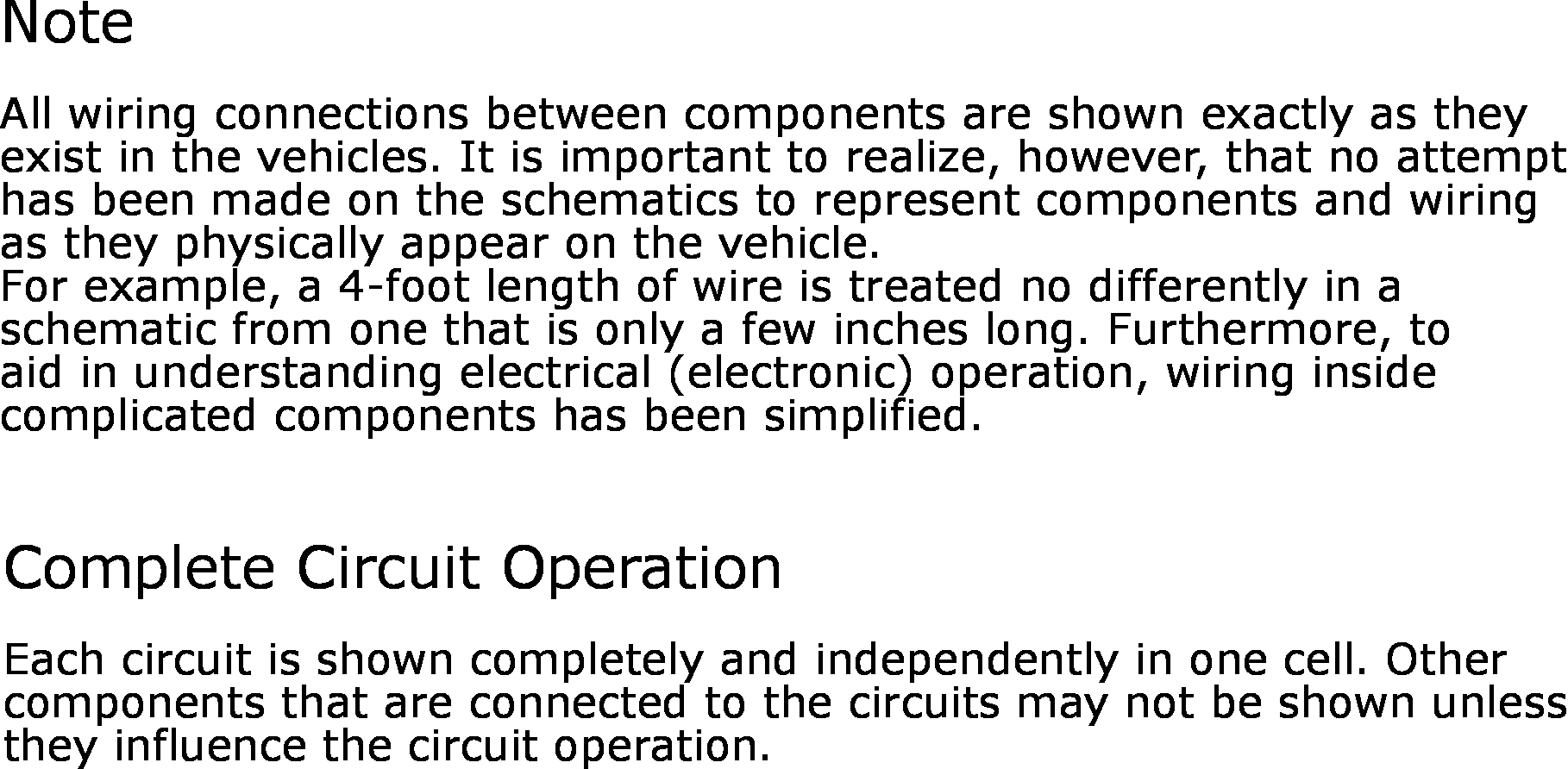

GFDW59927Courtesy of FORD MOTOR COMPANY

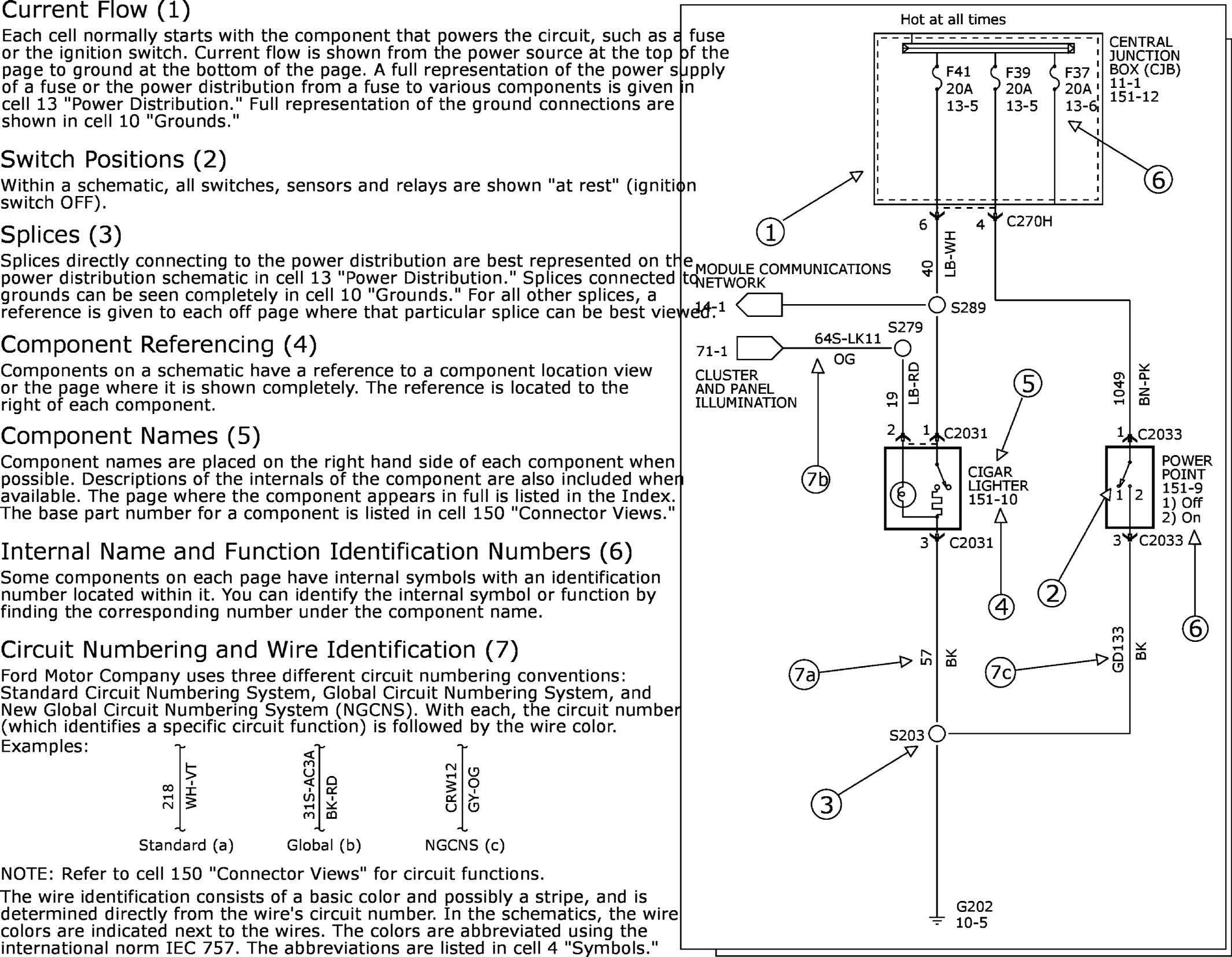

GFDW59928Courtesy of FORD MOTOR COMPANY

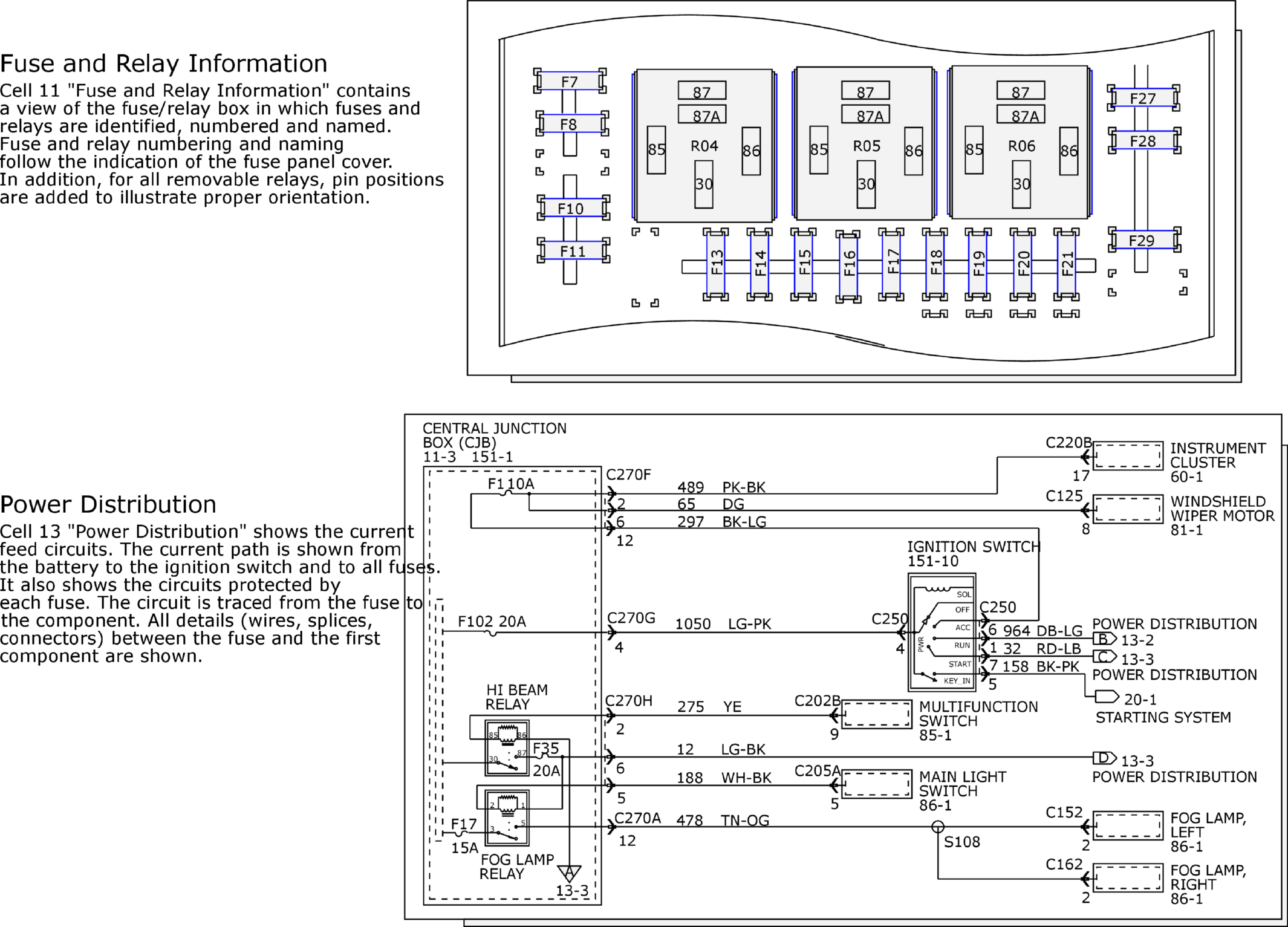

GFDW59929Courtesy of FORD MOTOR COMPANY

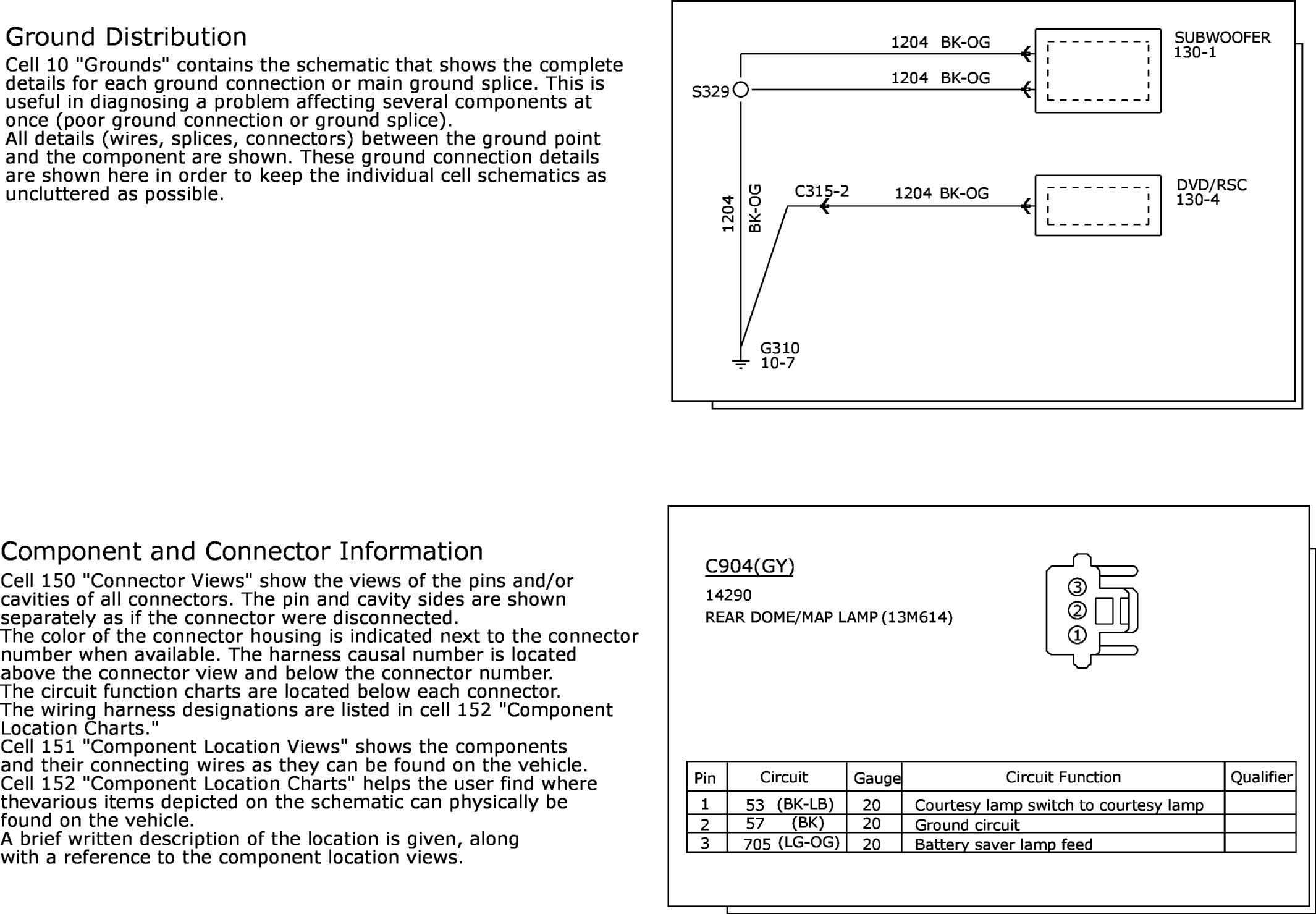

GFDW59930Courtesy of FORD MOTOR COMPANY

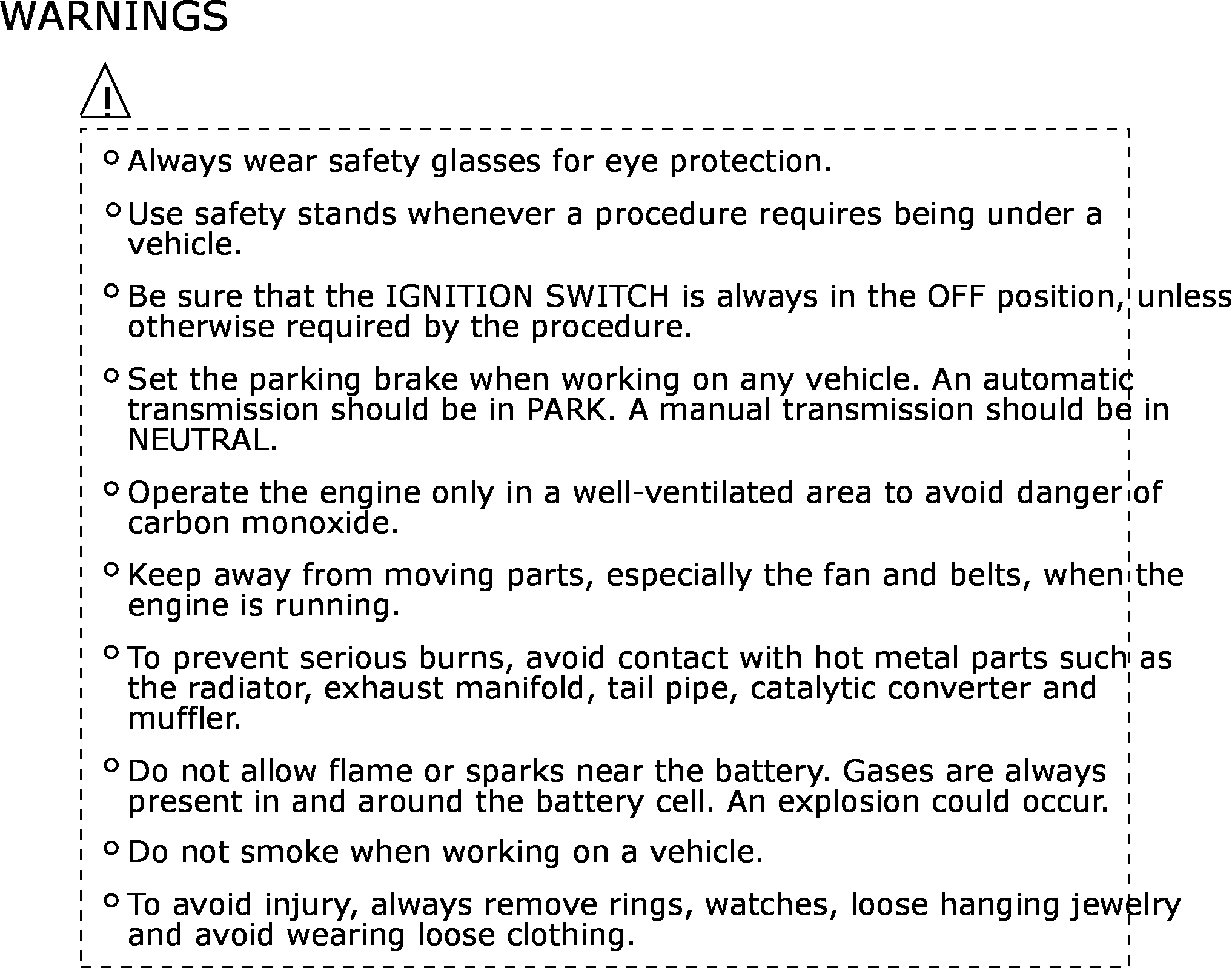

GFDW59931Courtesy of FORD MOTOR COMPANY
