Main Relay: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

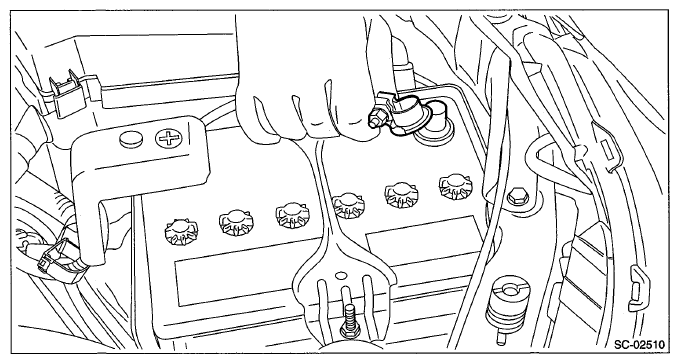

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lower cover. < Ref. to REMOVAL , Glove Box. >
Remove the main relay from the relay block on the back side of the glove box.

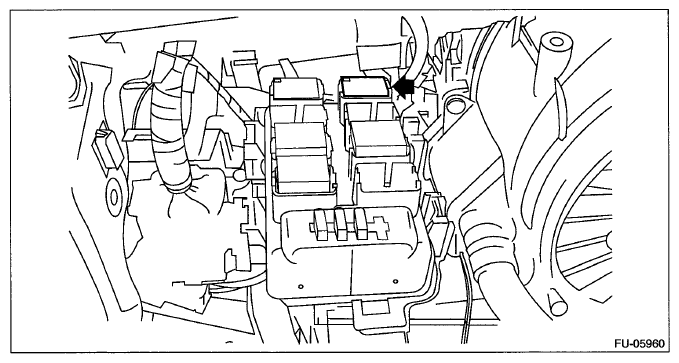

Fig 2: Locating Main Relay
Courtesy of SUBARU OF AMERICA, INC.
