Fuel Injector: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE: Use new O-rings, rubbers and seal rings.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

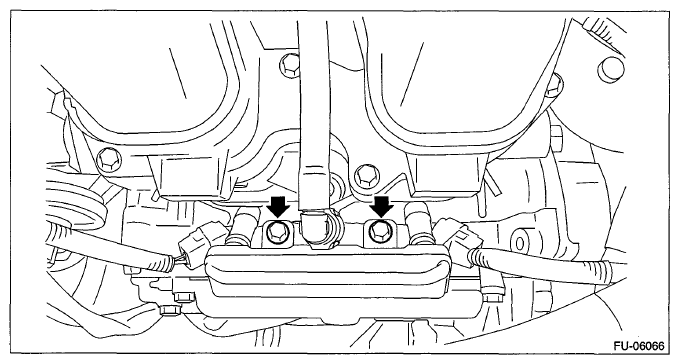

Fig 1: Locating Fuel Injector Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

LH side

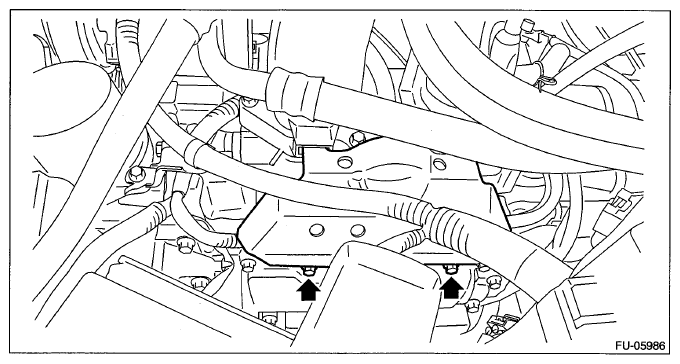

Fig 2: Locating Intake Manifold Protector Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
RH side

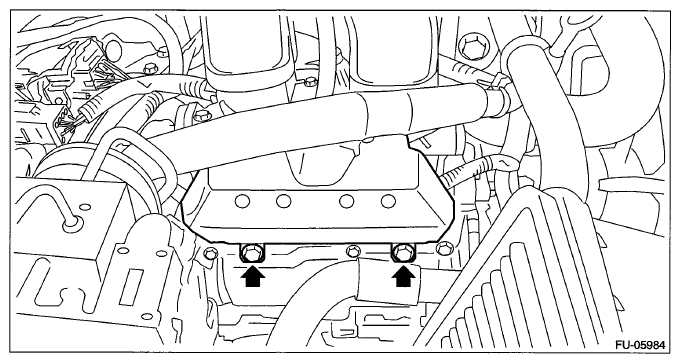

Fig 3: Locating Intake Manifold Protector Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:
3 N.m (0.3 kgf-m, 2.2 ft-lb)

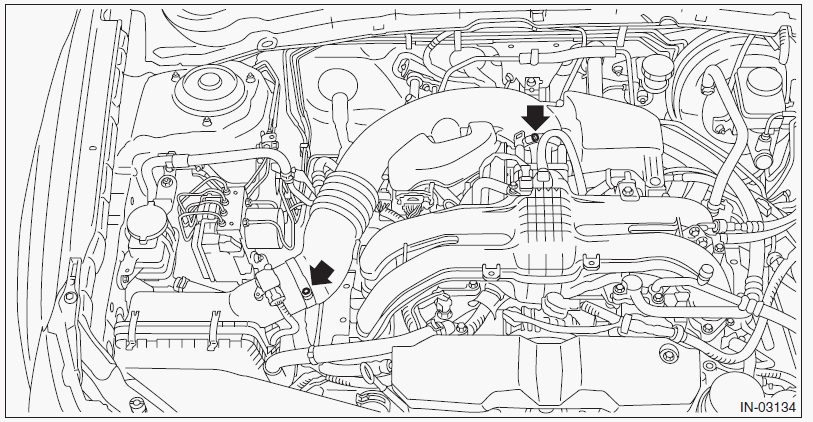

Fig 4: Identifying Air Intake Boot Clamps
Courtesy of SUBARU OF AMERICA, INC.
