Steering Column Motor: Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

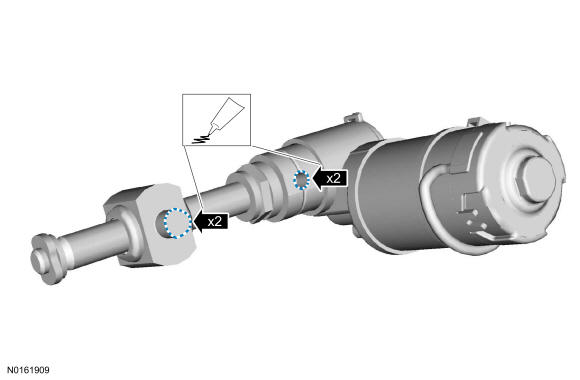

Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor leadscrew housing holes.

Courtesy of FORD MOTOR COMPANY

3.

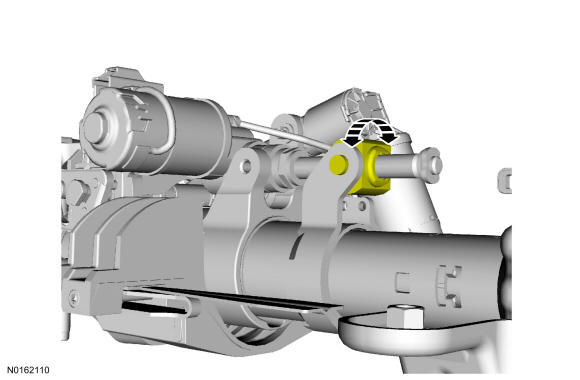

NOTE: If necessary, make small alignment adjustments by pivoting the tilt bracket.

Rotate the trunnion nut until the correct length is achieved to align the leadscrew housing with the threaded holes in the support arm.

Courtesy of FORD MOTOR COMPANY
