Console - Rear, Floor: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

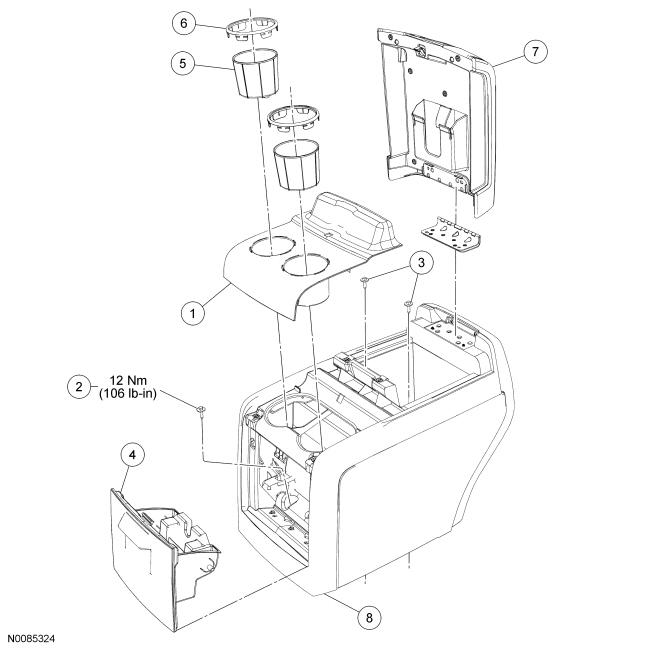

| Item | Part Number | Description |
|---|---|---|
| 1 | 04567 | Rear floor console cup holder |
| 2 | W706599 | Rear floor console front bolt (2 required) |
| 3 | W706599 | Rear floor console rear bolts (2 required) |
| 4 | 115A00 | Rear floor console storage bin |
| 5 | 13562 | Rear floor console cup holder insert (2 required) |
| 6 | - | Rear floor console cup holder trim ring |
| 7 | 06024 | Rear floor console storage compartment door |
| 8 | 045A36 | Rear floor console |
