Passenger Airbag: Notes
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Expedition

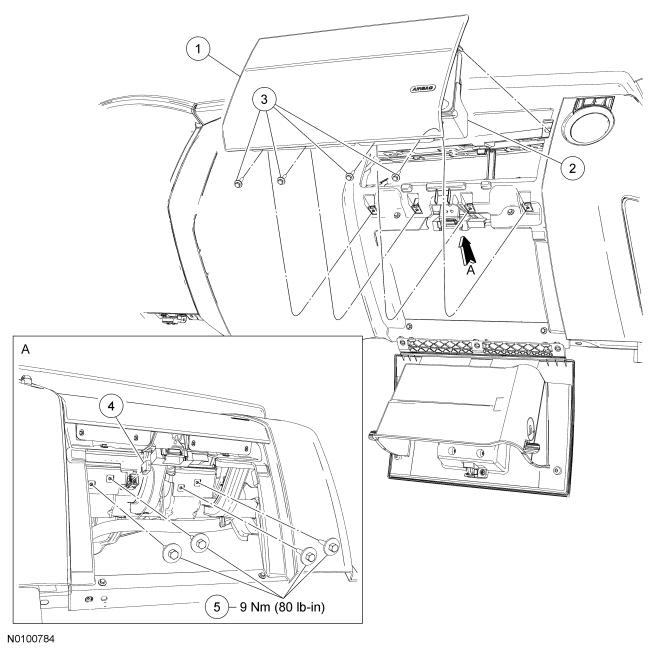

| Item | Part Number | Description |
|---|---|---|
| 1 | 04338 | Passenger air bag cover |
| 2 | - | Passenger air bag canister (part of 044A74) |
| 3 | W707628 | Passenger air bag cover screws |
| 4 | - | Passenger air bag module electrical connector (part of 14401) |
| 5 | W709027 | Passenger air bag module bolts |
