Tie Rod End

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

1.

Remove the wheel and tire. Refer to Wheels and Tires .

2.

NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.

NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

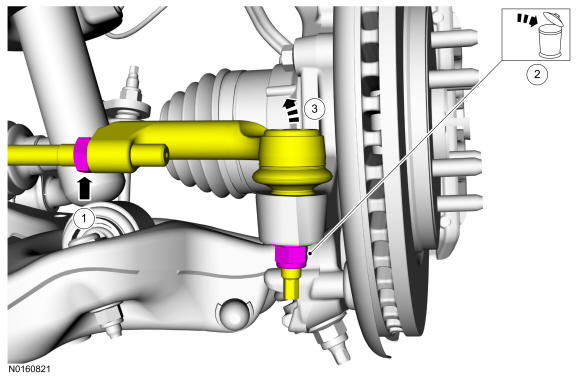

Separate the tie rod end from the wheel knuckle.
- 1.

  Loosen the tie rod end jamb nut.
  - To install, tighten to 103 Nm (76 lb-ft).
- 2.

  Remove and discard the tie rod end nut.
  - To install, tighten to 115 Nm (85 lb-ft).
- 3.

  Using the tie rod separator, Separate the tie rod end from the wheel knuckle.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie rod end.

Courtesy of FORD MOTOR COMPANY

Installation

1.

To install, reverse the removal procedure.

2.

Check and if necessary, adjust front toe. Refer to Suspension System General Information .
