Power Door Lock Switch

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

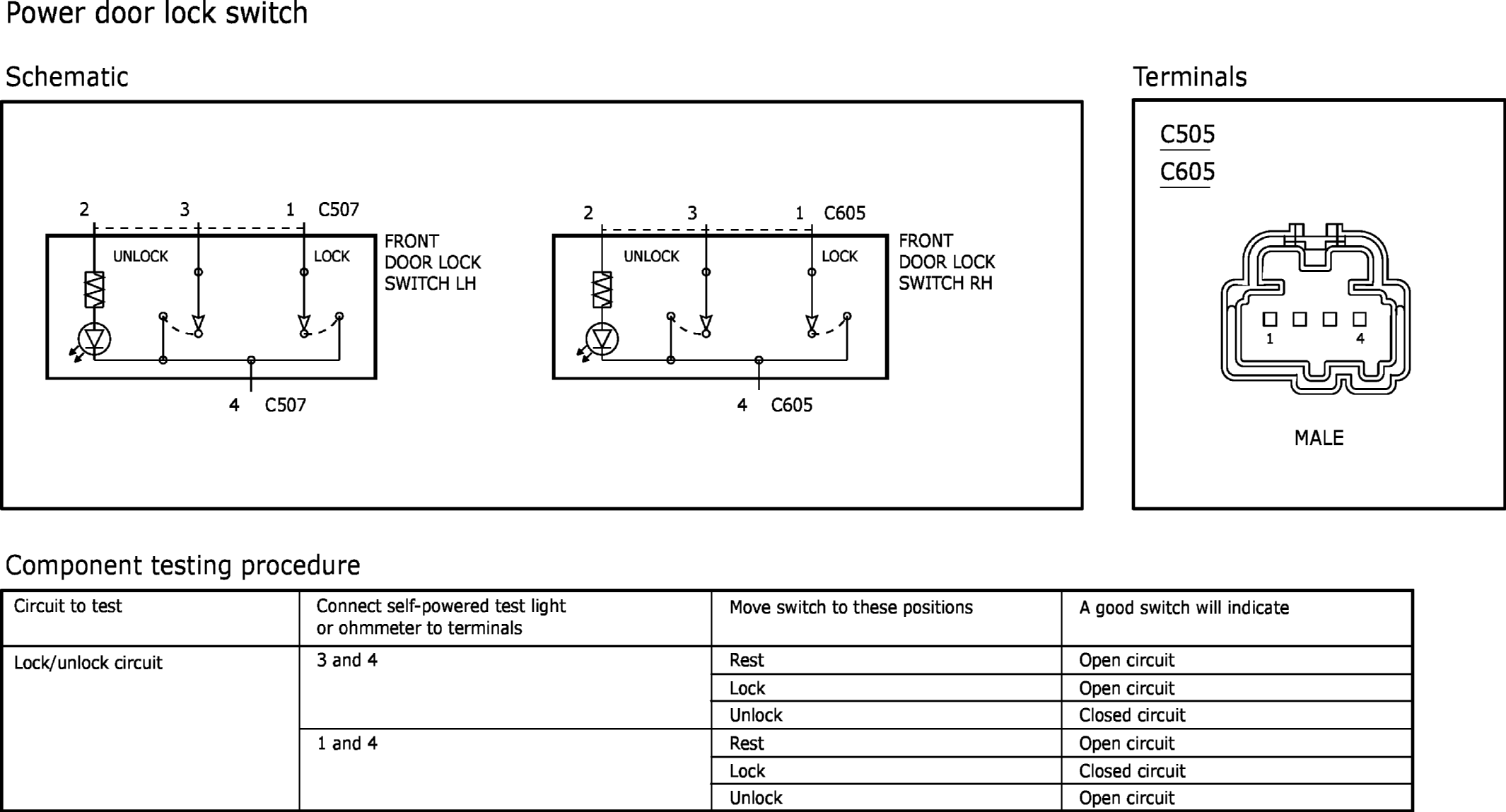

Fig 1: Power Door Lock Switch
GFDW60229Courtesy of FORD MOTOR COMPANY
