Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

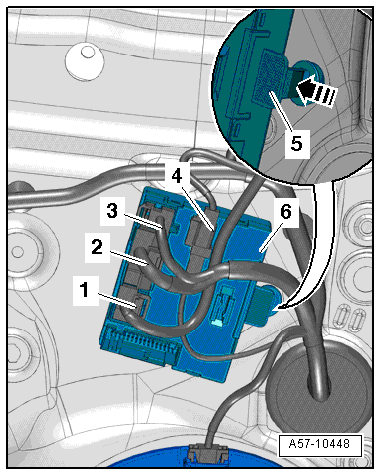

Fig 1: Identifying Door Control Module Removing/Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Open the release and the disconnect the connectors -1- and -2-.

-- Disconnect the connector -3-.

-- Disconnect the connector -4- on the door control module.

-- Press the retaining detent -5- in direction of -arrow- and disengage the door control module -6- on the door shell.

Installing

-- Installation in reverse order of removal making sure the retainer locks into the inner door panel.
