Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove left front wheel.
-- Remove the left front wheel housing liner, refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

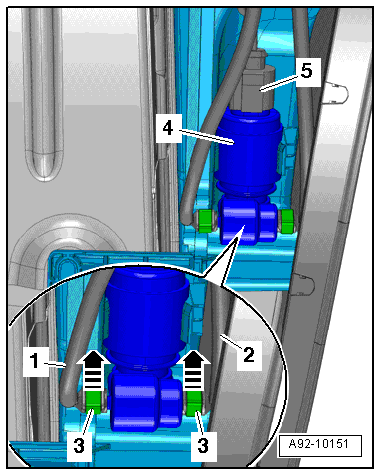

-- Disconnect the connector -5-.
-- Place a drip tray under the windshield washer fluid reservoir.
-- Remove the water lines -1- and -2- from the windshield washer pump by pulling the clamps -3- -arrow-.
-- Remove the Windshield Washer Pump -V5- -4- upward out of the washer fluid reservoir.
