Spray Nozzles, Adjusting
Special tools and workshop equipment required
- Washer Jet Setting Tool T40187 equipped with Replacement Tips For T101273125/5A
Adjusting
The settings indicate the values for a moving vehicle, i.e. the spray from the jets is slightly offset when the vehicle is stationary.
Danger of unintended engine ignition
Turn off the ignition and remove the ignition key from the vehicle interior for all work performed on the high voltage vehicle.

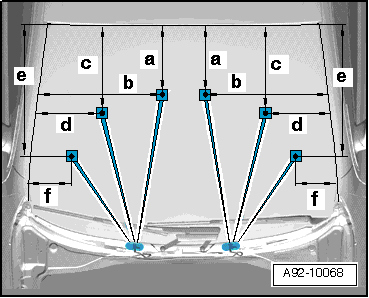

-- Mark the six points on windshield using a water soluble marker:
| Dimensions in mm | Driver side | Passenger side | |
|---|---|---|---|
| -a- | = | 285 | 285 |
| -b- | = | 535 | 535 |
| -c- | = | 325 | 325 |
| -d- | = | 335 | 335 |
| -e- | = | 480 | 480 |
| -f- | = | 165 | 165 |
Risk of injury.
- If the Washer Jet Setting Tool T40187 is not used, ensure that both sides are always covered and secured by covers -3- and -4-.
- If one side is not secured by the cover, injury can be caused by the Replacement Tips For T101273125/5A -1- or adjusting pin -2-.
- When opening each side, always ensure that the other side is not pointing toward the hand.
-- Unlock long cover -1- on the Washer Jet Setting Tool T40187 -arrow A- and push it back -arrow B-.
-- Place adjusting pin -2- on the respective nozzle -arrow- of nozzle unit -1- and aim at the points on the windshield and adjust if necessary.
-- If the spray field does not correspond to the specifications, clean dirty spray jet.
Risk of injury.
- The adjusting pin must be covered and secured by the cover after each use.
Cleaning the nozzle:
-- Remove nozzle, refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
-- Flush nozzle opposite to spray direction using clear water.
-- To remove remaining impurities, the nozzle must only be blown out opposite to spray direction using compressed air.
-- If the spray field still does not match the specifications, replace the spray nozzle.
