Torque Support And CROSSMEMBER, Removing And Installing: Removing

Fig 1: Identifying Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front wheel housing liner -1-, refer to WHEEL HOUSING LINER .

-- Remove the noise insulations -1 and 2-, refer to OVERVIEW - NOISE INSULATION .

Fig 2: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray VAS6208 under engine.

-- Remove the drain plug -2- and drain the coolant.

Fig 3: Coolant Drain Plug

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clip -1- and disconnect the coolant hose from under the right of the radiator.

-- Open the clamp -arrow- and from the under left of the radiator remove the connection.

Fig 4: Clamp -Arrow-

Courtesy of AUDI OF AMERICA, LLC

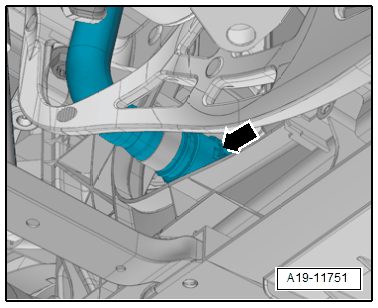

-- Remove the air guide hose from the air guide pipe by loosening the hose clamp -arrow-.

Fig 5: Removing Air Guide Hose From Right Air Guide Pipe And Lay It Aside

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and nut -3- and the lock carrier right brace -2-.

Fig 6: Removing Bolt And Nut

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrow-, Press stop -1- for the torque support towards the engine.

Fig 7: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

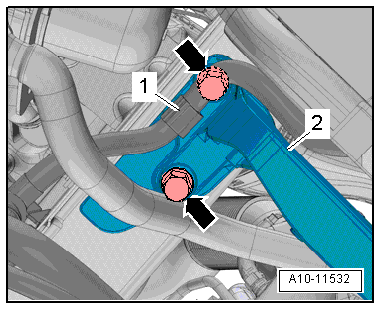

-- Remove the left and right bolts -arrows- and the crossmember -2- for the torque support.

Fig 8: Identifying Crossmember & Bolts

Courtesy of AUDI OF AMERICA, LLC

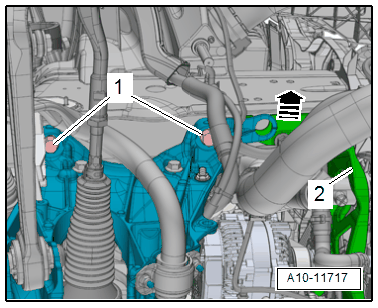

-- Loosen the bolts -1- on the subframe just enough until it is possible to free up and remove the crossmember -2- in direction of -arrow-.

Fig 9: Crossmember Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove stop -1-.

Fig 10: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

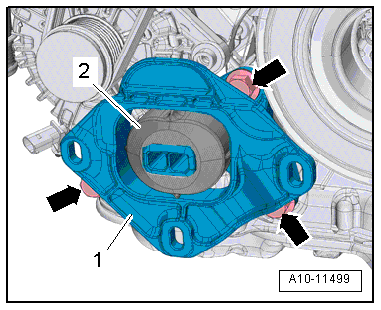

-- Remove the bolts -arrows- and remove the torque support -2-.
